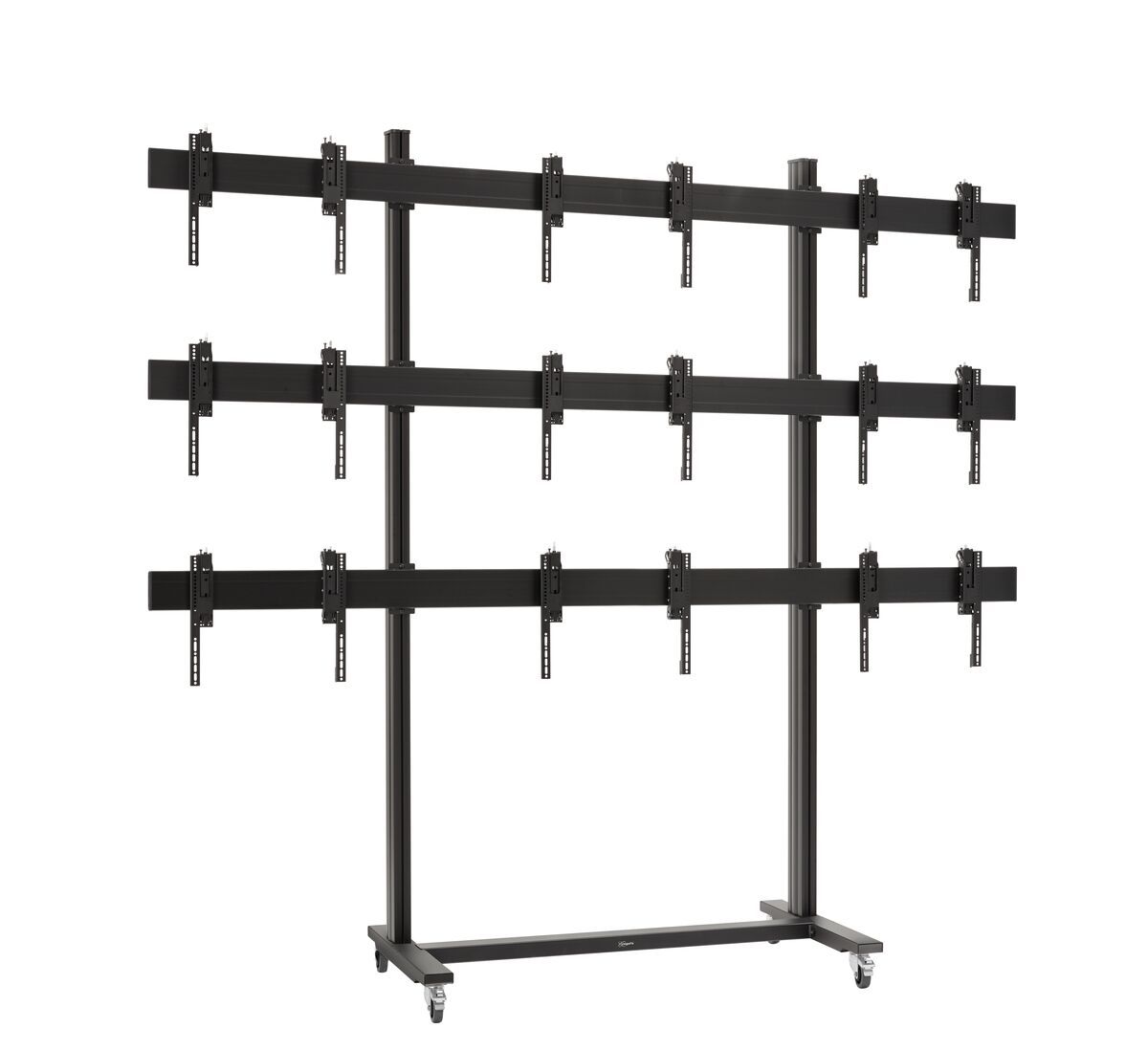

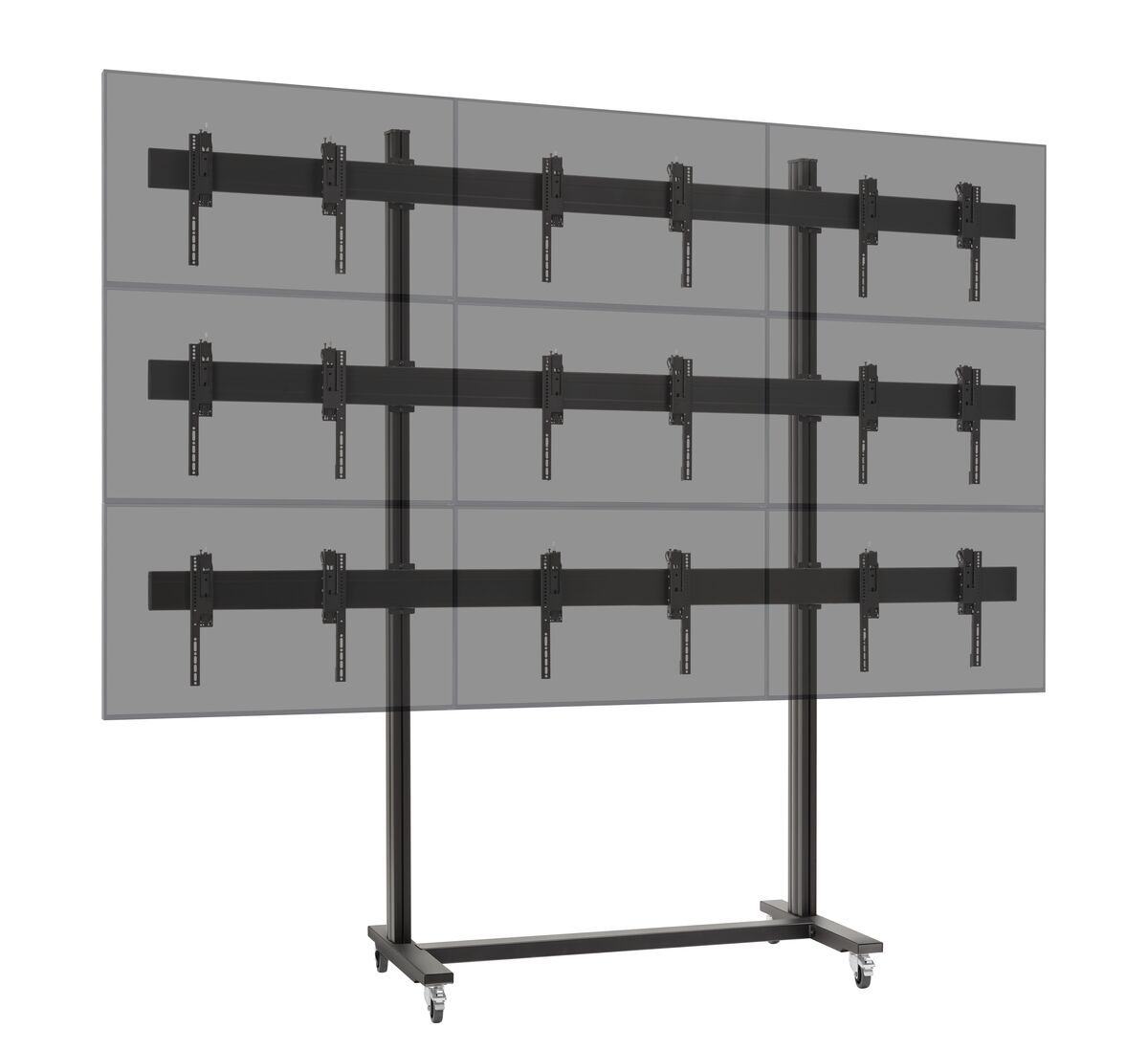

TVW3355 Video wall trolley 3x3
- Easy install
- Cable management
- Solid construction
Would you like to place your 3x3 video wall in a freestanding environment? And does it also need to be mobile? Vogel's has put together a complete kit for a professional mobile video wall solution. A video wall trolley. This video wall trolley kit is suitable for 55 inch LCD displays with a maximum weight of 44 kg/display. This modular system is quick and easy to install. Combine the video wall trolley undercarriage and crossbar with the PUC 29 poles, display interface bars and display interface strips to create your perfect video wall. With the specially designed (3D) interface strips, you can easily align any screen on the X, Y and Z axis. Even after installation, the screens remain easily accessible for maintenance purposes.
Video wall trolley 3x3
Display size: 55 inch
Mounting: 3335 x 400 mm
Max. weight: 44 kg/display
• 2x PFT 8920, Video wall trolley undercarriage
• 1x PFA 9130, Crossbar 1500 mm
• 2x PUC 2927 Tube 2700 mm
• 3x PFB 3433 Display interface bar
• 9x PFB 3504 Display interface strips 3D
Precision with ease for a seamless installation
When you want the ability to move your 3x3 video wall from one room to another, Vogel's offers the solution to mount your video wall on a video wall trolley. A kit has been assembled for this purpose together with the modular Connect-it system. Combine a video wall trolley undercarriage and crossbar with Connect-it PUC 29 poles, one or more display interface bars and display interface strips to create a mobile video wall. With ease of installation in mind, Vogel's has designed a unique, adjustable trolley undercarriage. This trolley undercarriage is equipped with robust, sturdy wheels that make it easy to move the trolley around. These wheels are also equipped with a brake, ensuring that you can safely lock your video wall trolley when you don't need to move it around. How easy is that? The display interface strips used when mounting video walls have maximum adjustability and can be adjusted in three directions (3D). These 3D display interface strips enable you to create a completely seamless and perfect video wall.
Smart design makes maintenance simple
The built-in service position makes it possible to connect cables after installation of the displays. Each individual display can also be removed for maintenance or replacement. The built-in locking function prevents horizontal movement of the displays. This video wall floor stand kit is suitable for LCD displays of 55 inch with a maximum weight of 44 kg/display.
Install your video wall quickly and easily. Choose precision with ease for a seamless end result. A solution that suits you and your customers perfectly and can be placed in any environment. An attractive design, one system for different applications, easy to maintain and both durable and versatile. Vogel’s. For Sure.
Awards and certificates
This product passed extensive tests to guarantee compliance with the TÜV Nord quality standard. Products are tested to carry at least 3 times the indicated weight for domestic related products and at least 5 times for professional products without collapsing. TÜV NORD is an independent certification authority and recognized globally as the label of excellent quality.
Specifications For TVW3355 Video wall trolley 3x3
- EAN single box
- Product group
- Display trolley
- TÜV certified
- 5 years
- Video wall configuration
- Suitable for screen type
- Height (mm)
- Min. screen size (inch)
- Max. screen size (inch)
- Max. weight load (kg)
- Max. vertical hole pattern (mm)
- Max. horizontal hole pattern (mm)
- Pole length (mm)
- 2700 mm
- Height of trolley/stand (mm)
- Max. height mid display (mm)
