S052.7200 Floor lift XL for touchscreen max. 86 inch, 135 kg

  • Ample storage space for AV equipment
  • Adjustable in height up to 60 cm

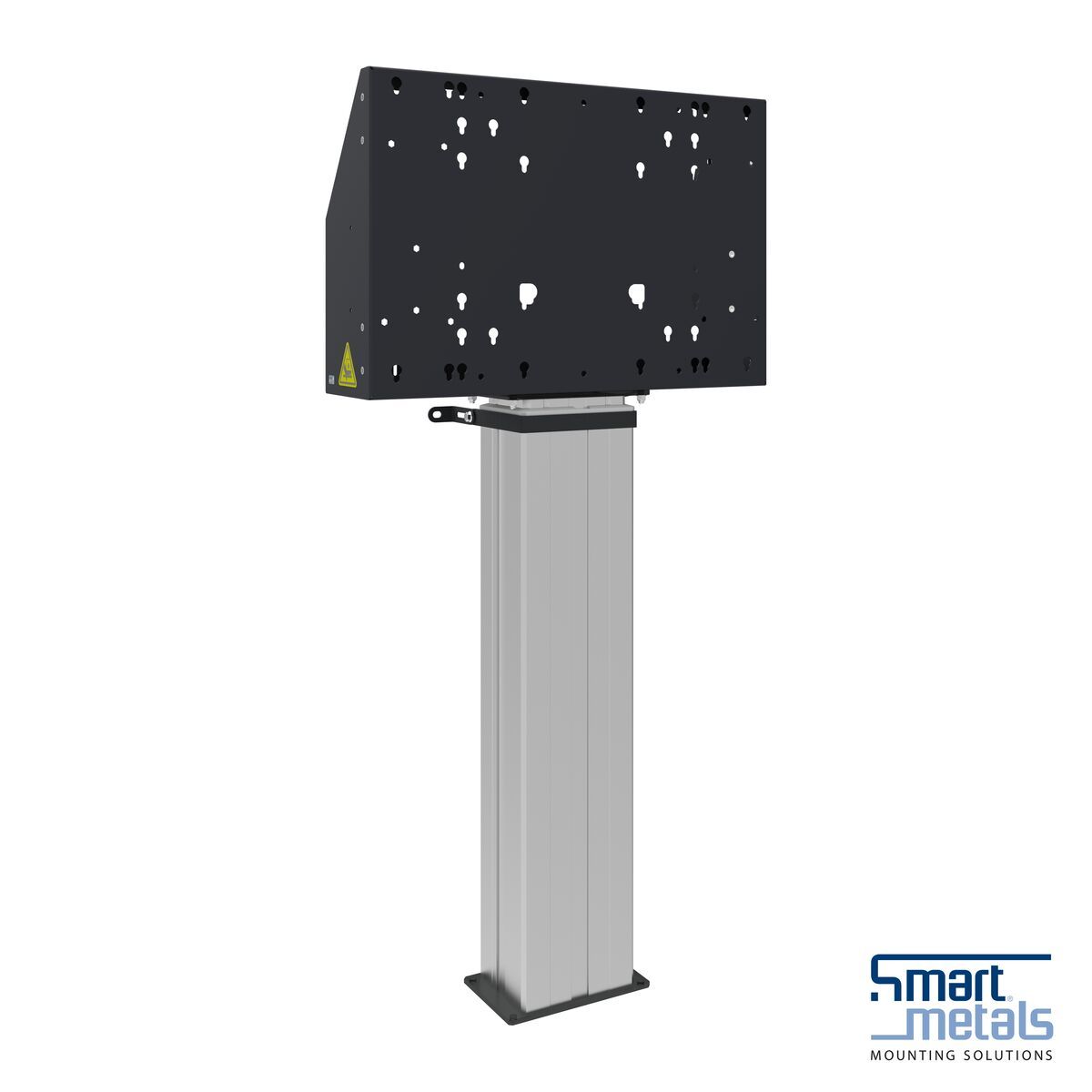

This motorized display lift allows you to effortlessly adjust the height of your display or interactive display. With a range of some 60 cm in motorized height adjustment, this is the ultimate solution for anyone looking for a flexible display set-up.

Suitable for almost all displays
The lift is suitable for displays with a maximum size of 86 inch and weighing up to 135 kg.

Adjustability
The motorized lift is adjustable in height by up to 60 cm, ensuring that your display is always at the perfect height for optimal visibility and interaction.

Floor mounting
The display lift can be quickly and easily mounted on the floor.

Safety first
To increase the safety of your environment, many motorized trolleys are equipped with an anti-collision system. This is not standard on this trolley. To add this functionality to this system, you must order the separate anti-collision module S052.7217.

Extra reinforcement
For extra reinforcement, an adjustable wall mount is included. This provides added stability and safety even when using larger displays.

S052.7200 Floor lift XL for touchscreen max. 86 inch, 135 kg

Specifications For S052.7200 Floor lift XL for touchscreen max. 86 inch, 135 kg

EAN single box
8718868870322
Product group
Motorized lift module
Guarantee
5 years
Colour
Silver
Suitable for screen type
  • LCD
Motorized
Yes
Min. distance to floor - center display (mm)
1145
Max. distance to floor - center display (mm)
1745
Height adjustment (mm)
600
Liftspeed
20 mm/s
Max. weight load (kg)
135
Max. weight load (lbs)
297.62
Min. screen size (inch)
55
Max. screen size (inch)
86
Min. horizontal hole pattern (mm)
100
Max. horizontal hole pattern (mm)
600
Min. vertical hole pattern (mm)
100
Max. vertical hole pattern (mm)
400
