RISE 5308 Motorized Display Lift Trolley

  • Height adjustment range of no less than 980 mm
  • Movement speed of 80 mm/s for the heaviest screens with QuickRise®
  • TüV, CE, UL and GS certified
  • Specially designed foot for extra safety
  • Anti-collision on the display lift prevents damage

Screen moved smoothly and safely to the correct height

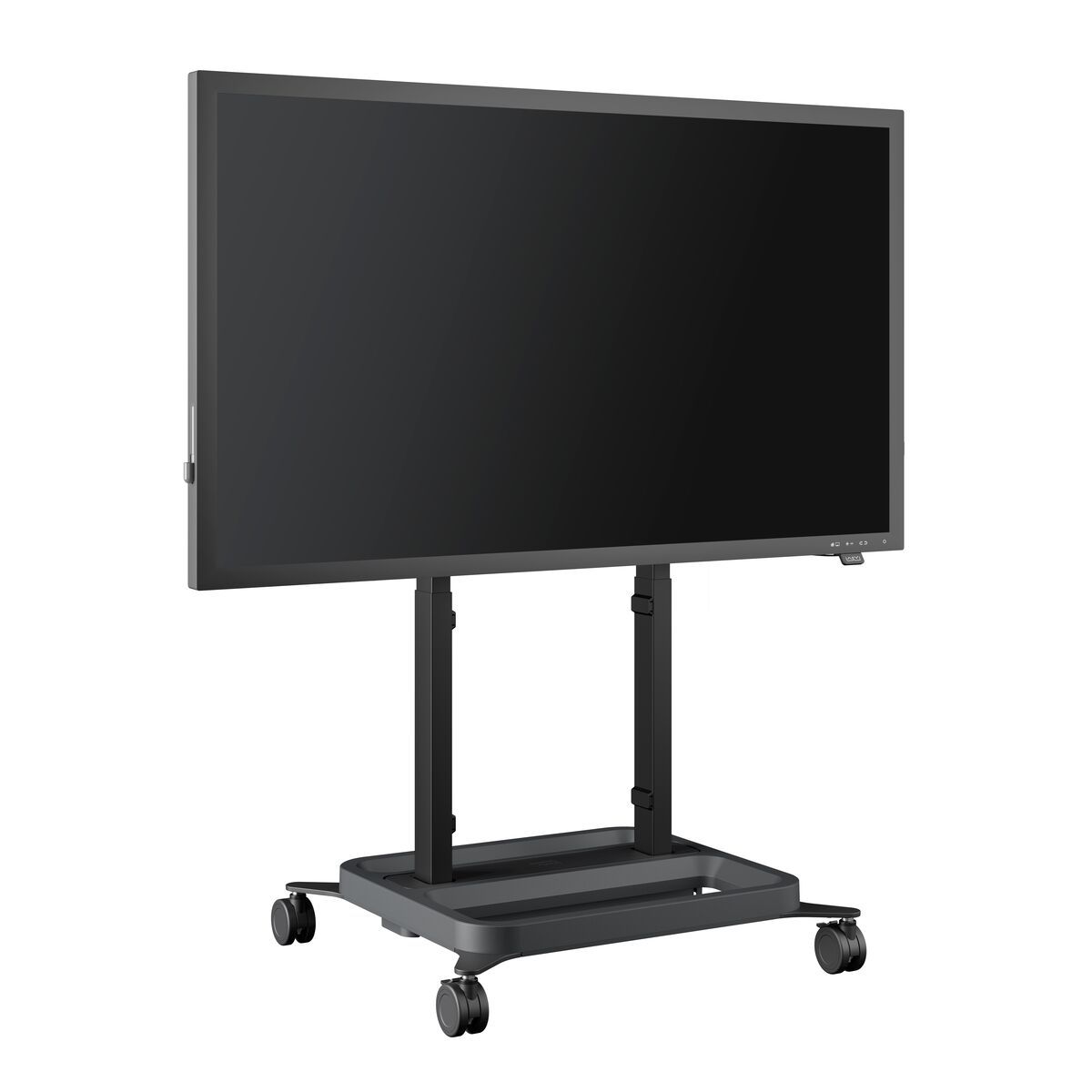

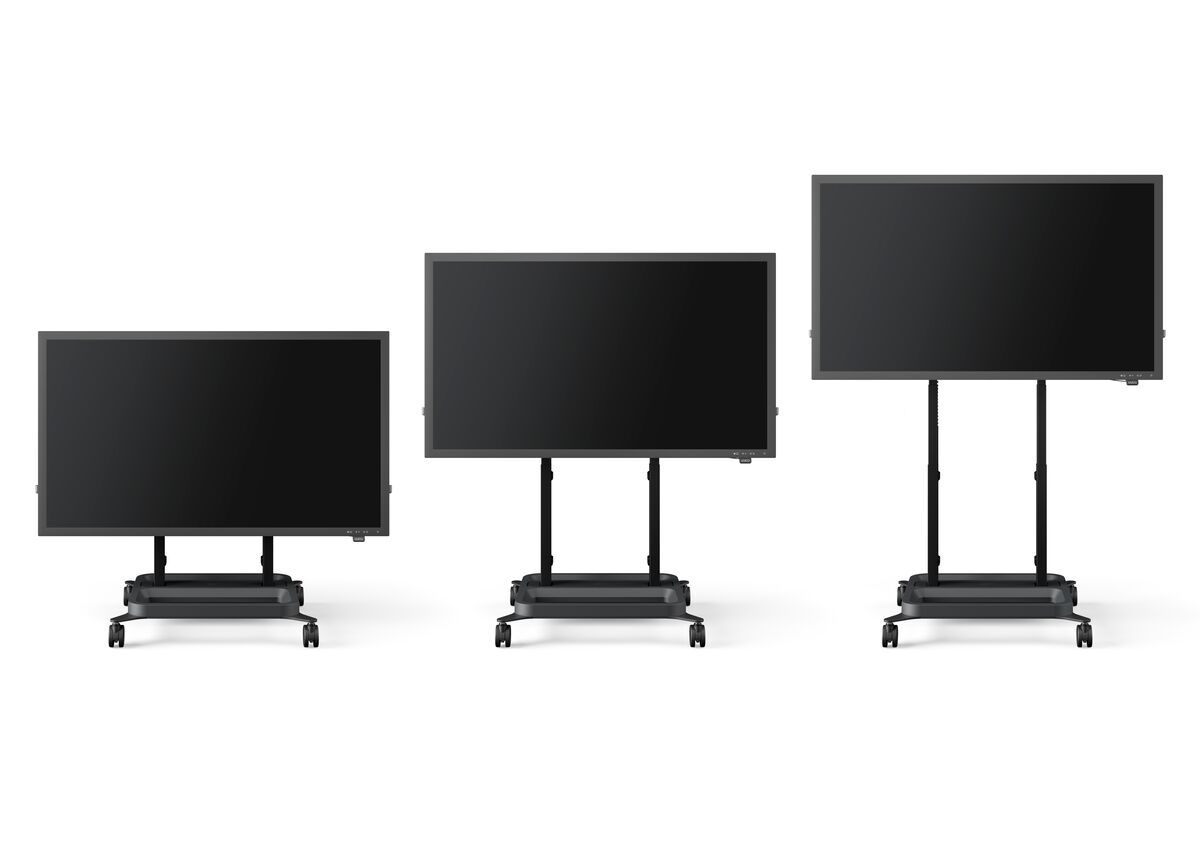

A RISE 5308 motorized display and TV lift trolley is suitable for displays of up to 98" and 120 kg max. The lift raises the screen smoothly, quickly and safely at a speed of 80 mm/s with QuickRise™. With a 980 mm travel range the lift is suitable for both very low and high positions.

The top-down assembly ensures quick installation. We offer a 5 year guarantee.

Safety first
Vogel's display lift systems comply with the highest international safety standards of TÜV, CE, UL and GS.

Although they are programmed for 86-inch screens, these motorized lift systems can be used for most 98" monitors. A small software adjustment (height adjustment) may occasionally be required (see user manual).

Well thought-out design for easy use and installation

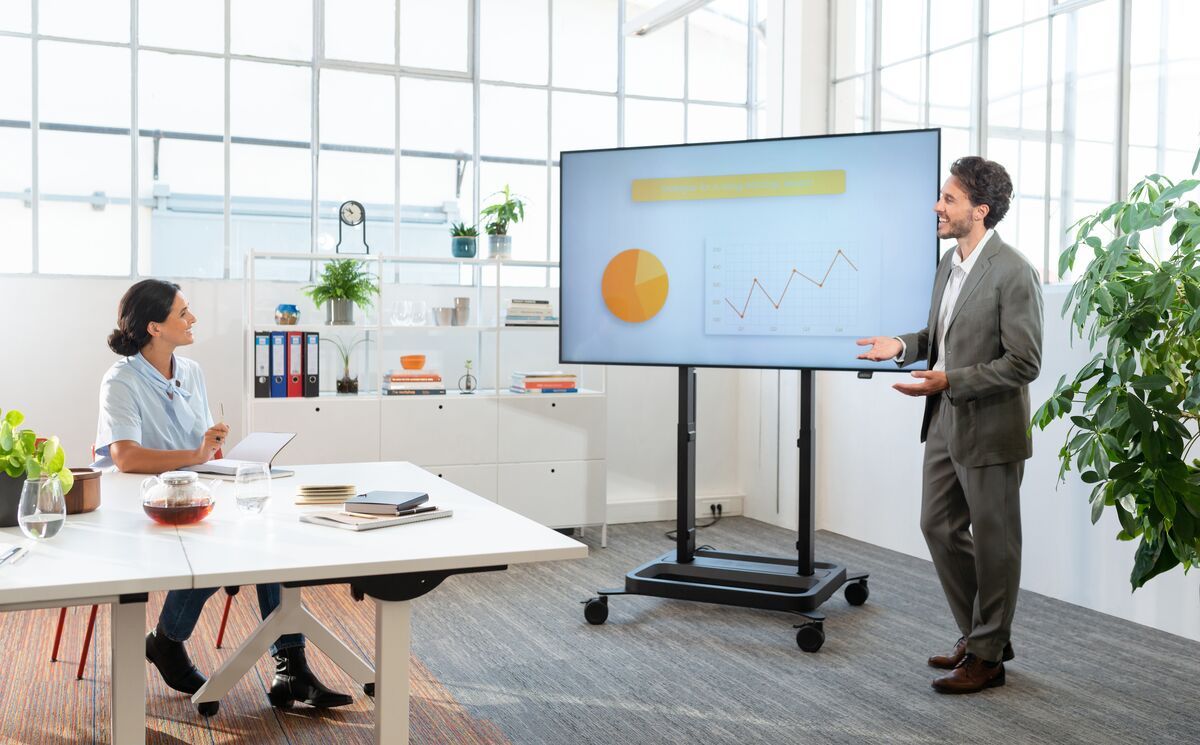

With its stylish and timeless design, this Vogel's mobile motorized display lift fits into any environment, such as a school, meeting room, lobby or boardroom. The sturdy column base can easily lift any brand of interactive flat panel display up to 98" with a maximum weight of 120 kg. Cable management (CIS®) allows easy concealment of cables during installation.

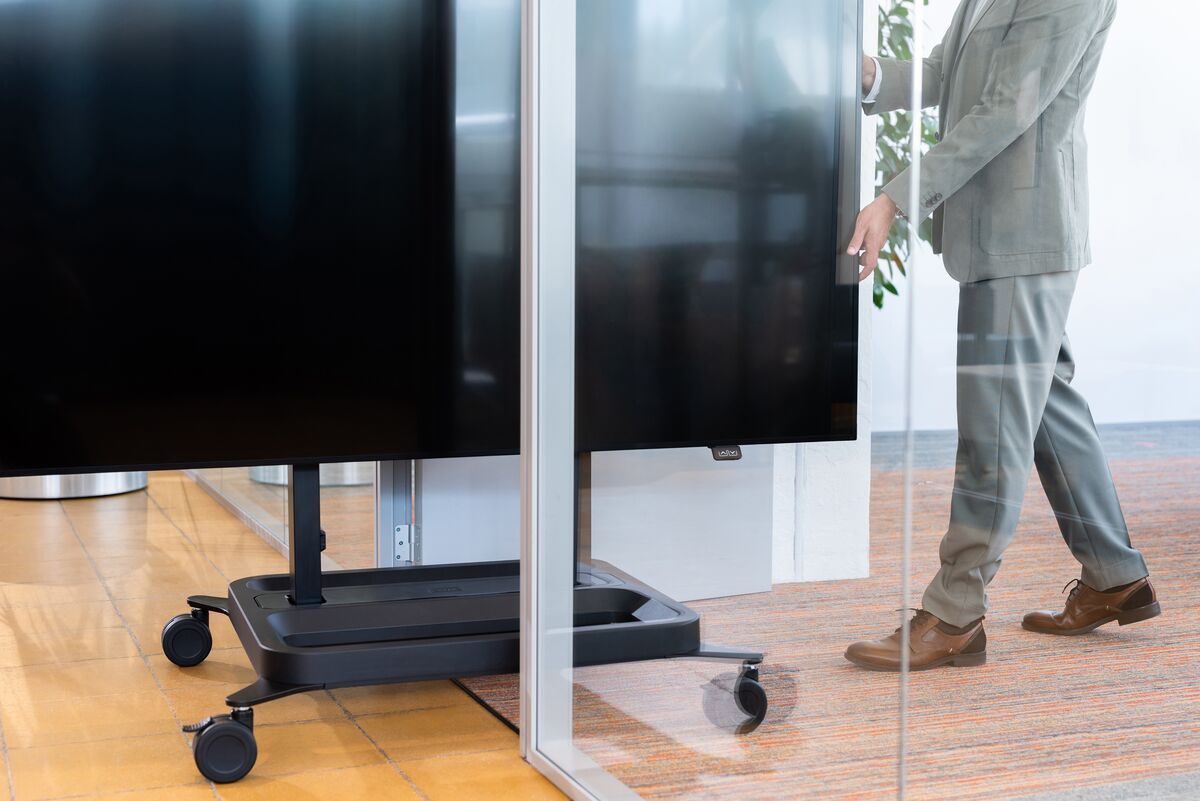

The base construction is designed for extra safety and prevents you from tripping over it. Thanks to the sturdy 100mm swivel castors, the lift can be moved easily over any surface, whether it is a PVC floor, a stone floor or a deep pile carpet. Anti collision on the display lifts prevent the screen and system from damage, in case of obstruction the lift moves back in opposite direction.

Suitable for any brand of display
The use of a universal interface makes the lifts suitable for any brand of interactive flat panel display (IFPD). RISE products are suitable for screens of up to 98 inches. Would you like to place a larger screen on this lift? Or is the VESA positioned off-centre? You can always contact our sales desk for advice.

Various RISE accessories
All RISE motorized display lifts can be expanded with accessories such as whiteboard kits, laptop stands, video conferencing camera platforms, a soundbar mount or a hidden storage unit.

Rise to the occasion
A series of motorized display lifts that allow you to intuitively and safely position a screen in the right place and at the right height. Always safe thanks to the durable and stylish design, which meets the highest international safety standards. Quick and easy to assemble. Vogel's RISE display lifts; rise to the occasion.

Vogel’s. For Sure.

RISE 5308 Motorized Display Lift Trolley

Videos

Commercial video
Mounting instruction video
Product video

Awards and certificates

This product passed extensive tests to guarantee compliance with the TÜV Nord quality standard. Products are tested to carry at least 3 times the indicated weight for domestic related products and at least 5 times for professional products without collapsing. TÜV NORD is an independent certification authority and recognized globally as the label of excellent quality.

Specifications For RISE 5308 Motorized Display Lift Trolley

EAN single box
8712285358227
Series
RISE
Product group
Motorized trolley
TÜV certified
Yes
Guarantee
5 years
Colour
Black
Suitable for screen type
  • LCD
Motorized
Yes
Wheel type
Double wheel
Min. distance to floor - center display (mm)
893
Max. distance to floor - center display (mm)
1873
Height adjustment (mm)
980
Liftspeed
80 mm/sec
Max. weight load (kg)
120
Max. weight load (lbs)
264.55
Min. screen size (inch)
55
Max. screen size (inch)
98
Min. horizontal hole pattern (mm)
300
Max. horizontal hole pattern (mm)
800
Min. vertical hole pattern (mm)
300
Max. vertical hole pattern (mm)
600
