PUA 9505 Girder / H-beam clamp 70-180 mm

The PUA 9505 is part of the modular Vogel's display/projector mounting system which enables you to easily create your own (H-beam/girder) mounting solutions for medium- to large-sized displays.

The PUA 9505 is designed for mounting flat displays and projectors on Girder/H-beams without drilling. The PUA 9505 is suitable for girders with a width between 70 mm and 180 mm.The PUA 9505 needs to be used in combination with the ceiling plates (PUC 1011/ 1035/ 1060/ 1065/ 1070/ 1080) and the PUC 21xx, PUC 23xx, PUC 25xx poles.

PUA 9505 Girder / H-beam clamp 70-180 mm

This product has been discontinued

Awards and certificates

This product passed extensive tests to guarantee compliance with the TÜV Nord quality standard. Products are tested to carry at least 3 times the indicated weight for domestic related products and at least 5 times for professional products without collapsing. TÜV NORD is an independent certification authority and recognized globally as the label of excellent quality.

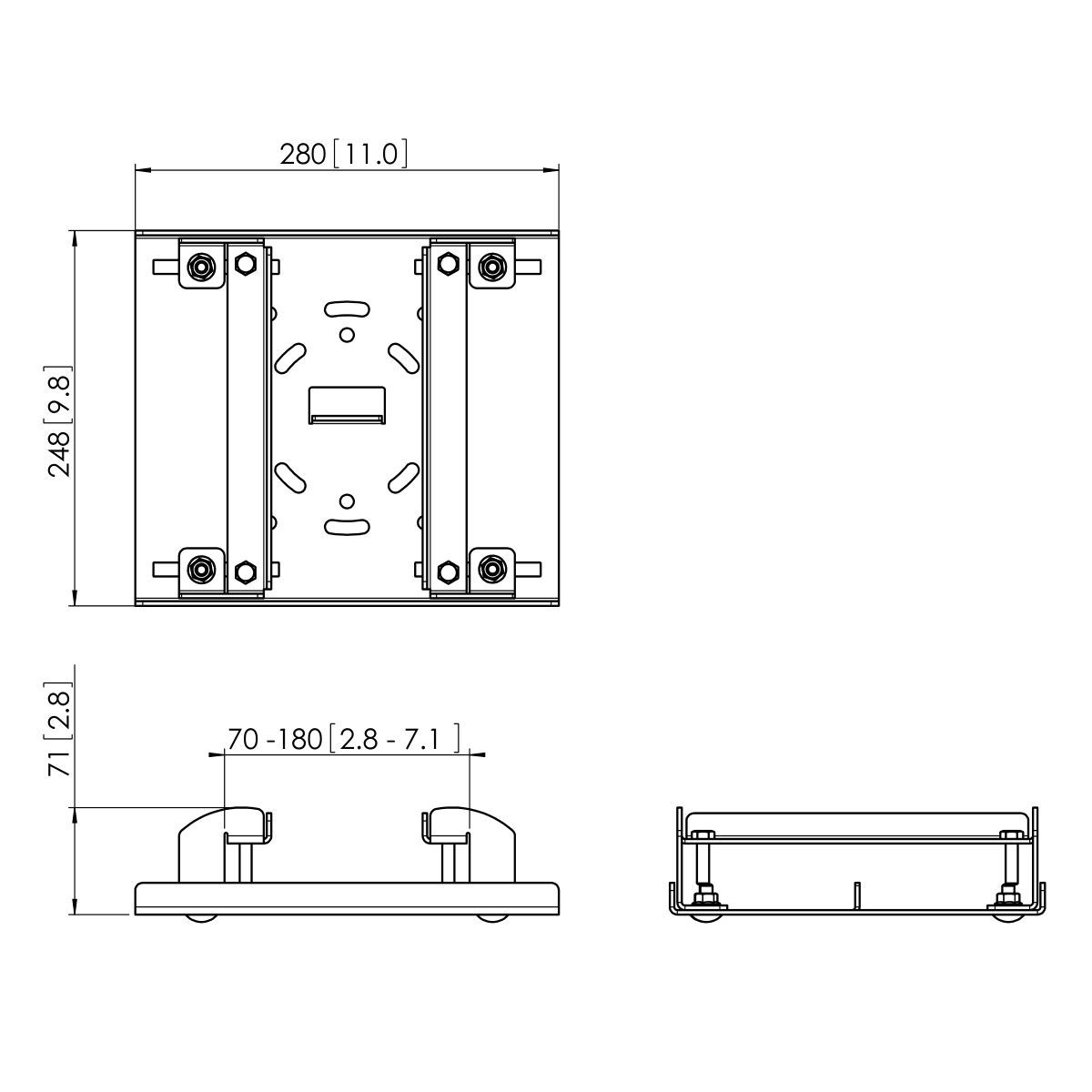

Specifications For PUA 9505 Girder / H-beam clamp 70-180 mm

Article number
7295074
EAN single box
8712285319440
Guarantee
5 years
Colour
Black
TÜV certified
Yes
Max. weight load (kg)
80
Height options
Fixed height, Manually adjustable height
H-beam size
70-180 mm
Ceiling types
Girder, H-beam
