PPC 1540 Projector Ceiling Mount (white)

  • Cables fully concealed
  • Fine tuning during installation
  • Fine tuning possible after installation
  • Theft prevention

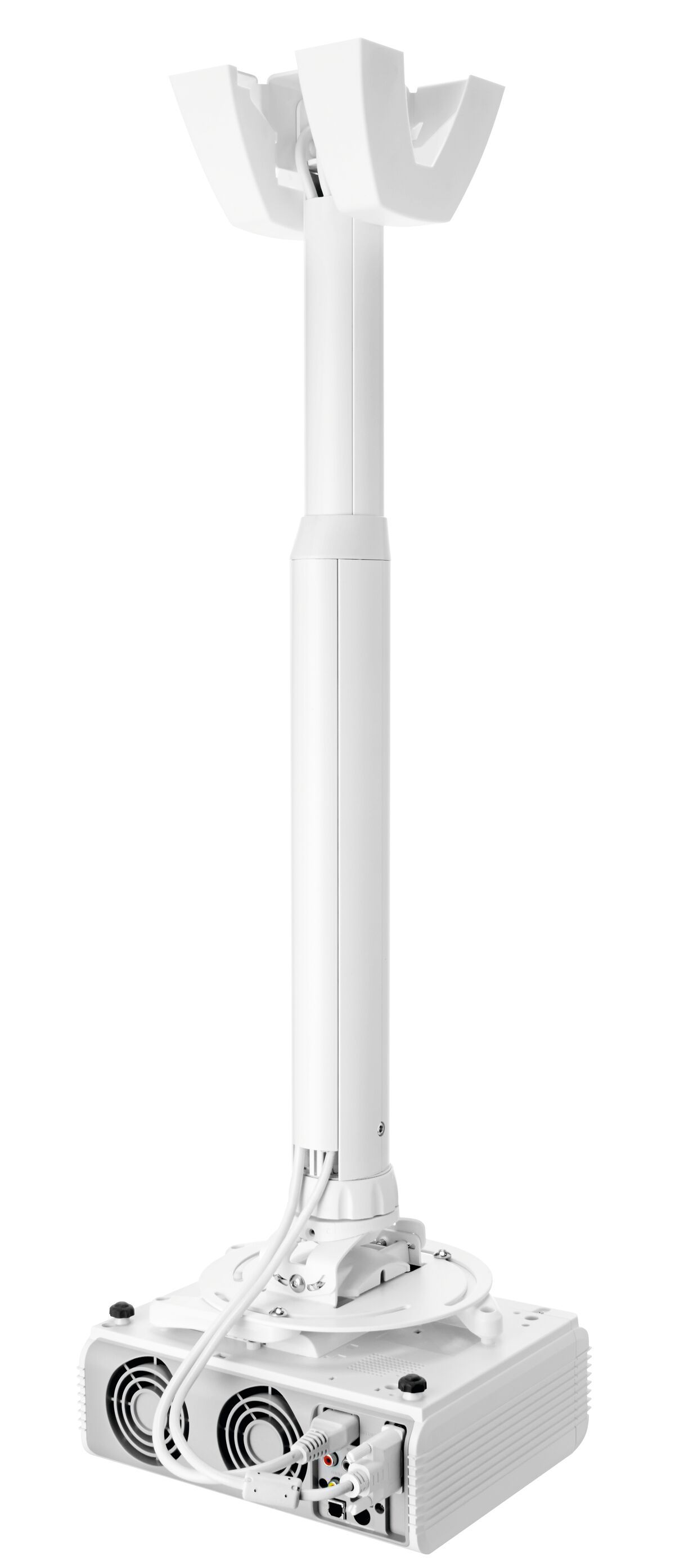

The PPC 1540 is a height adjustable projector mount specially designed for the latest generation of projectors weighing up to 20 kg. This projector interface is equipped with fine tune adjustability for precise alignment to the projection surface. Once aligned, the projector stays in position. Turning the unique friction ring will eliminate all play from the interface connections, making the mount a solid and very stable solution.

The height adjustable projector ceiling mount kits can be used when the height of the ceiling is not known or when flexibility is wanted. These mounts come in 3 lengths offering variable height adjustment from 400 to 1350 mm. The Cable Inlay System runs the full length of the pole and even allows for cable routing after installation. The offers sufficient space for all cables required and enables you to hide all the cables in a matter of seconds.

PPC 1540 Projector Ceiling Mount (white)

Videos

Product video

Awards and certificates

This product passed extensive tests to guarantee compliance with the TÜV Nord quality standard. Products are tested to carry at least 3 times the indicated weight for domestic related products and at least 5 times for professional products without collapsing. TÜV NORD is an independent certification authority and recognized globally as the label of excellent quality.

Fischer inside

Fischer plugs inside

Specifications For PPC 1540 Projector Ceiling Mount (white)

EAN single box
8712285325168
Series
General
Product group
Projector ceiling mount
Guarantee
5 years
Colour
White
TÜV certified
Yes
Min. distance to ceiling (mm)
400
Max. distance to ceiling (mm)
550
Turn
Up to 360°
Tilt
Tilt up to 15°
Roll
15
Max. weight load (kg)
20
Max. weight load (lbs)
44.09
Fischer inside
Yes

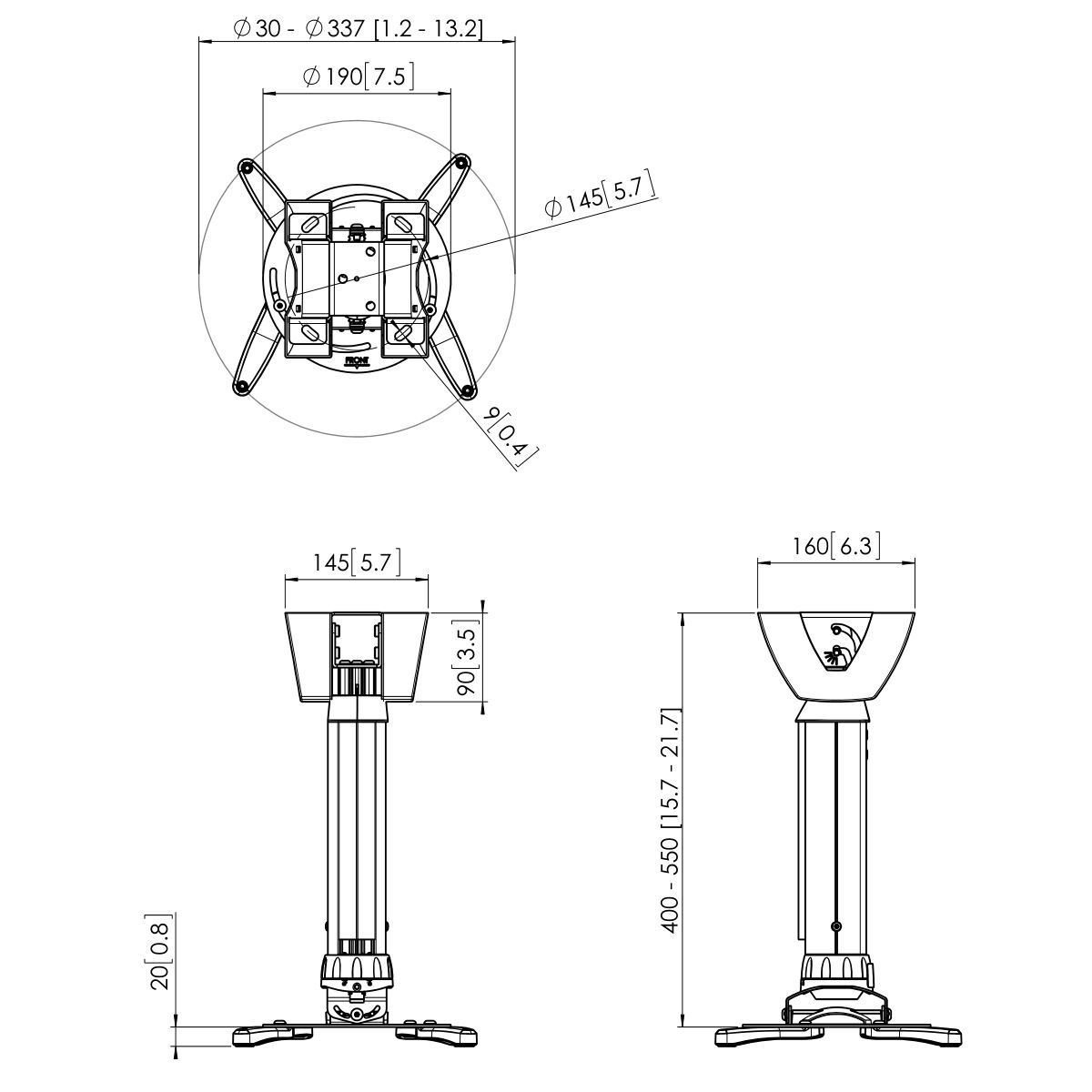

Range (diameter)
30 - 337 mm
Height range (mm)
400 - 550 mm
