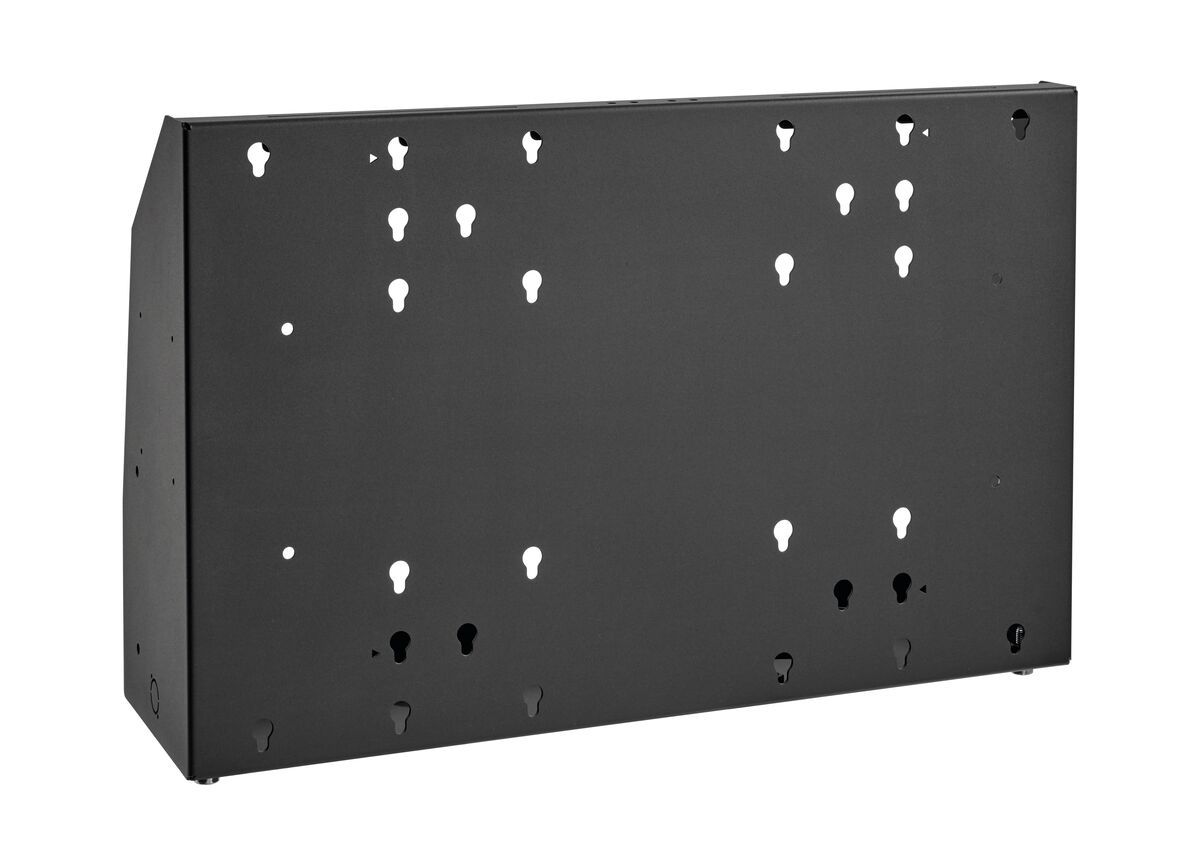

PFI 3061 Interface box for PFFE 7105/7106

The PFI 3061 interface box is specifically designed for the PFFE 7105 / 7106 display lift. In the interface box there is ample storage space for cables, a mini PC and other peripherals. On the bottom are multiple mounting patterns so you can mount one or two actuators. Thanks to the standard mounting patterns you are able to mount almost ever display directly to the interface. Use the optional PFA 9119 electronic safety strip to prevent damage when the movement is blocked by an object.
Read more
Request a quote
Ask a question about this product

PFI 3061 Interface box for PFFE 7105/7106

Request a quote
Ask a question about this product

This product has been discontinued

Specifications For PFI 3061 Interface box for PFFE 7105/7106

EAN single box
8712285343308
Series
Connect-it
Product group
Display interface
Guarantee
5 years
Colour
Black

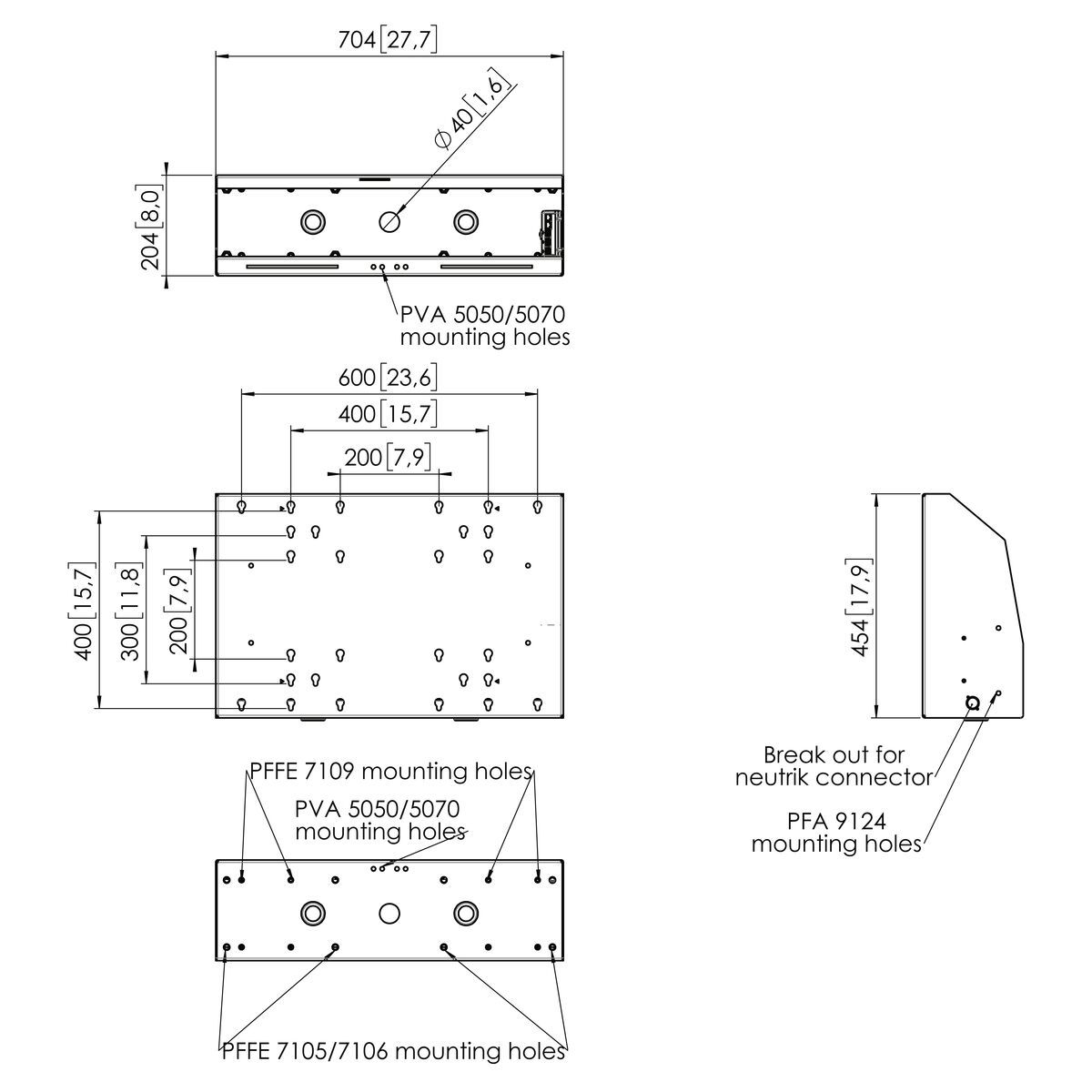

Height (mm)
454
Width (mm)
704
Depth (mm)
204
Max. screen size (inch)
90
Max. weight load (kg)
135
Max. weight load (lbs)
297.62
Min. vertical hole pattern (mm)
200
Max. vertical hole pattern (mm)
400
Min. horizontal hole pattern (mm)
200
Max. horizontal hole pattern (mm)
600

Downloads For PFI 3061 Interface box for PFFE 7105/7106

Mounting instruction
Product Data Sheet
CAD product image
Product leaflet
