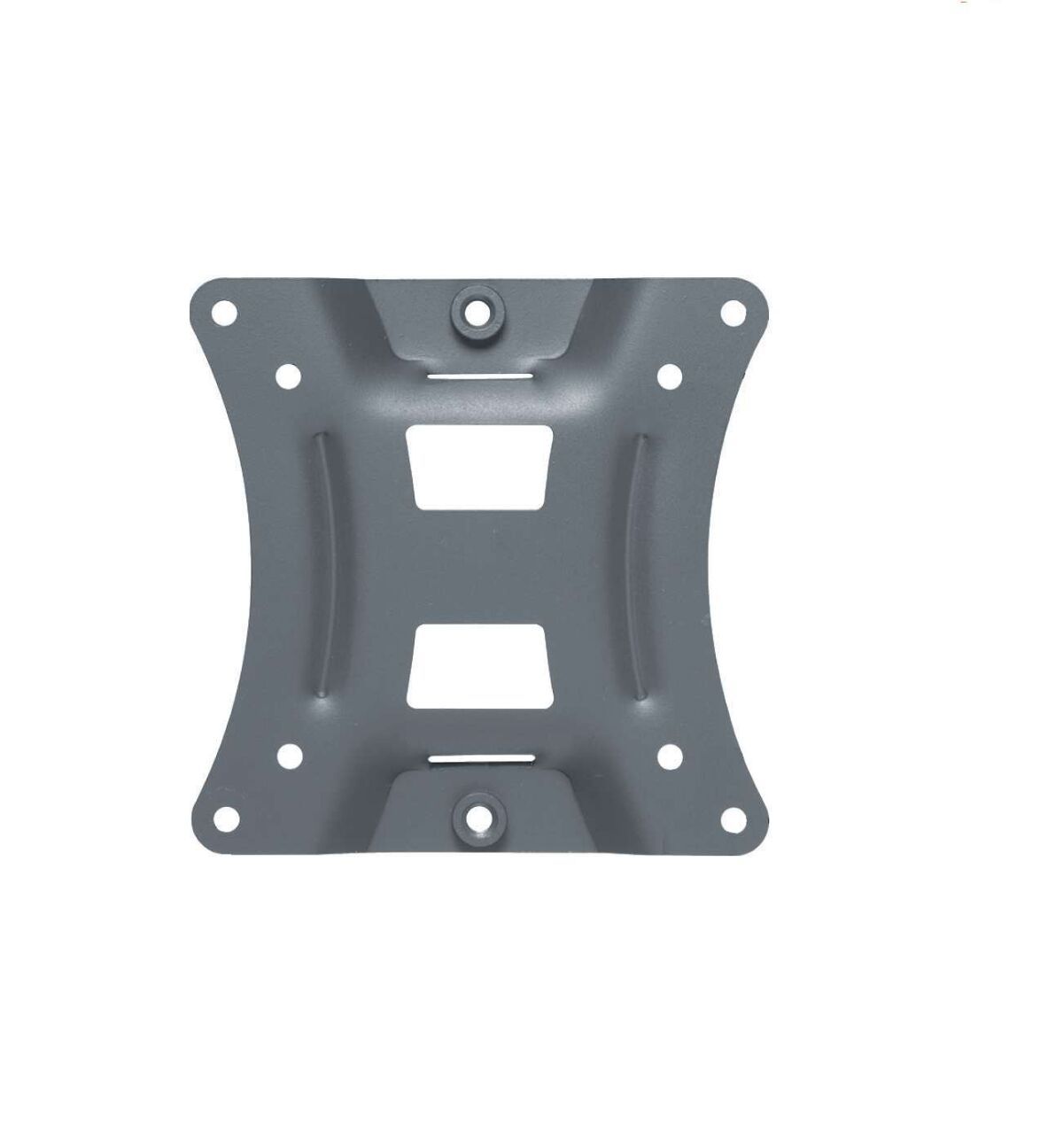

FAU-D Display interface

The FAU-D universal flat display interface can be used to mount a LCD TV to the ceiling or floor (in combination with other modular parts).

FAU-D Display interface

This product has been discontinued

Specifications For FAU-D Display interface

EAN single box
8712285310409
Series
9000Series
Product group
Display interface
Guarantee
5 years
Colour
Black

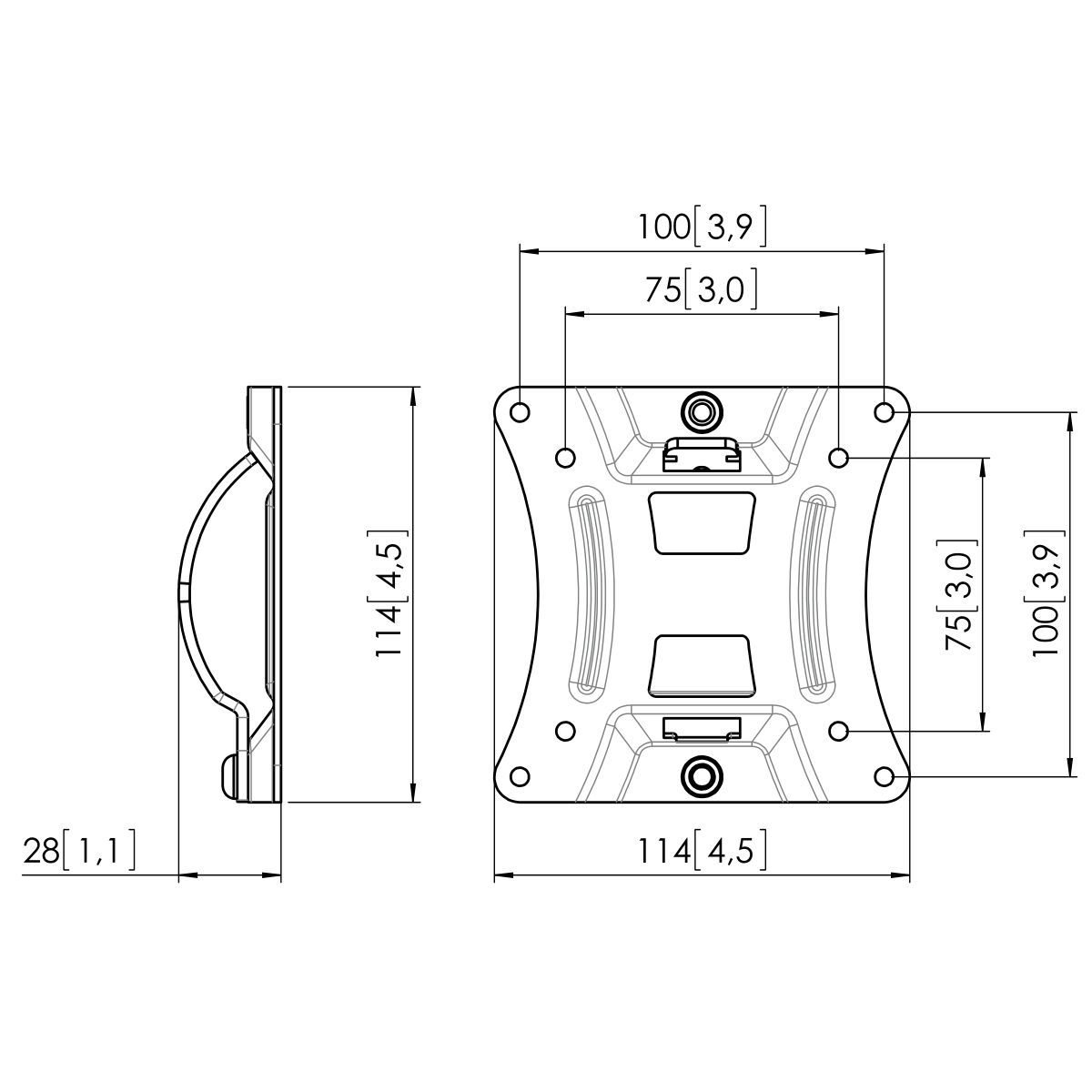

Height (mm)
114
Width (mm)
114
Min. screen size (inch)
12
Max. screen size (inch)
23
Max. weight load (kg)
12
Max. weight load (lbs)
26.46
Hole pattern (VESA)
  • 75 mm x 75 mm
  • 100 mm x 100 mm
Min. vertical hole pattern (mm)
75
Max. vertical hole pattern (mm)
100
Min. horizontal hole pattern (mm)
75
Max. horizontal hole pattern (mm)
100
