CVW3355 Video Wall Ceiling Solution 3x3
- Easy to install and maintain
- Quick to install
- Easy to align on X-Y-Z axis
- Solution for every configuration
- TÜV-5 certified
Not possible to place your 3x3 video wall on the wall? Vogel's has put together a complete kit for a professional video wall ceiling solution. This video wall ceiling solution kit is suitable for 55 inch (1397 mm) LCD displays weighing up to 45 kg (99 lb)/display. This modular system is quick and easy to install. Combine the floor-ceiling mounting plates with the PUC 29 poles, display interface plates and display interface strips to create your perfect video wall. With the specially designed (3D) interface strips, you can easily align any screen on the X, Y and Z axis. Even after installation, the screens remain easily accessible for maintenance purposes.

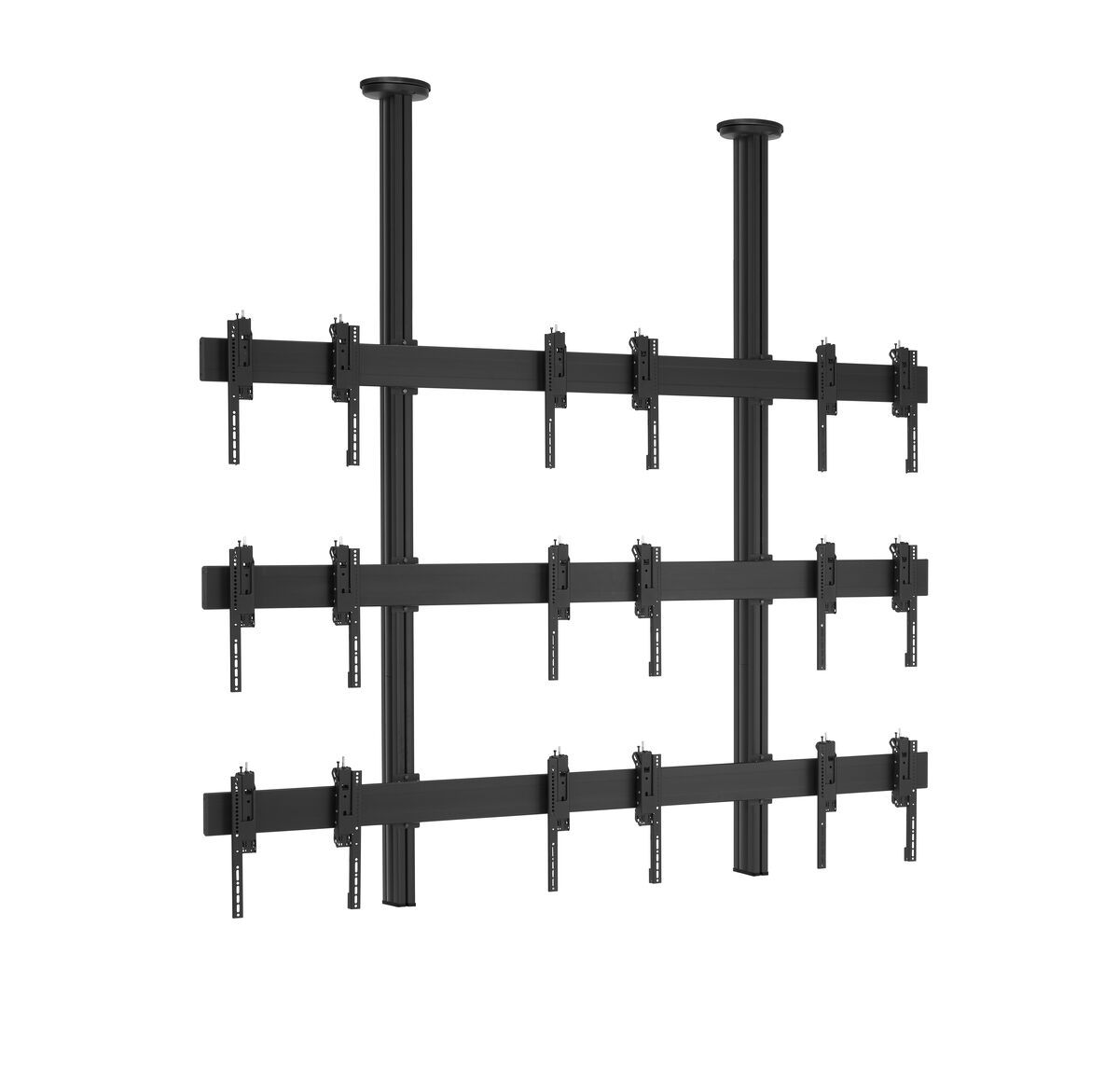

Video wall ceiling solution 3x3
Display size: 55 inch (1397 mm)

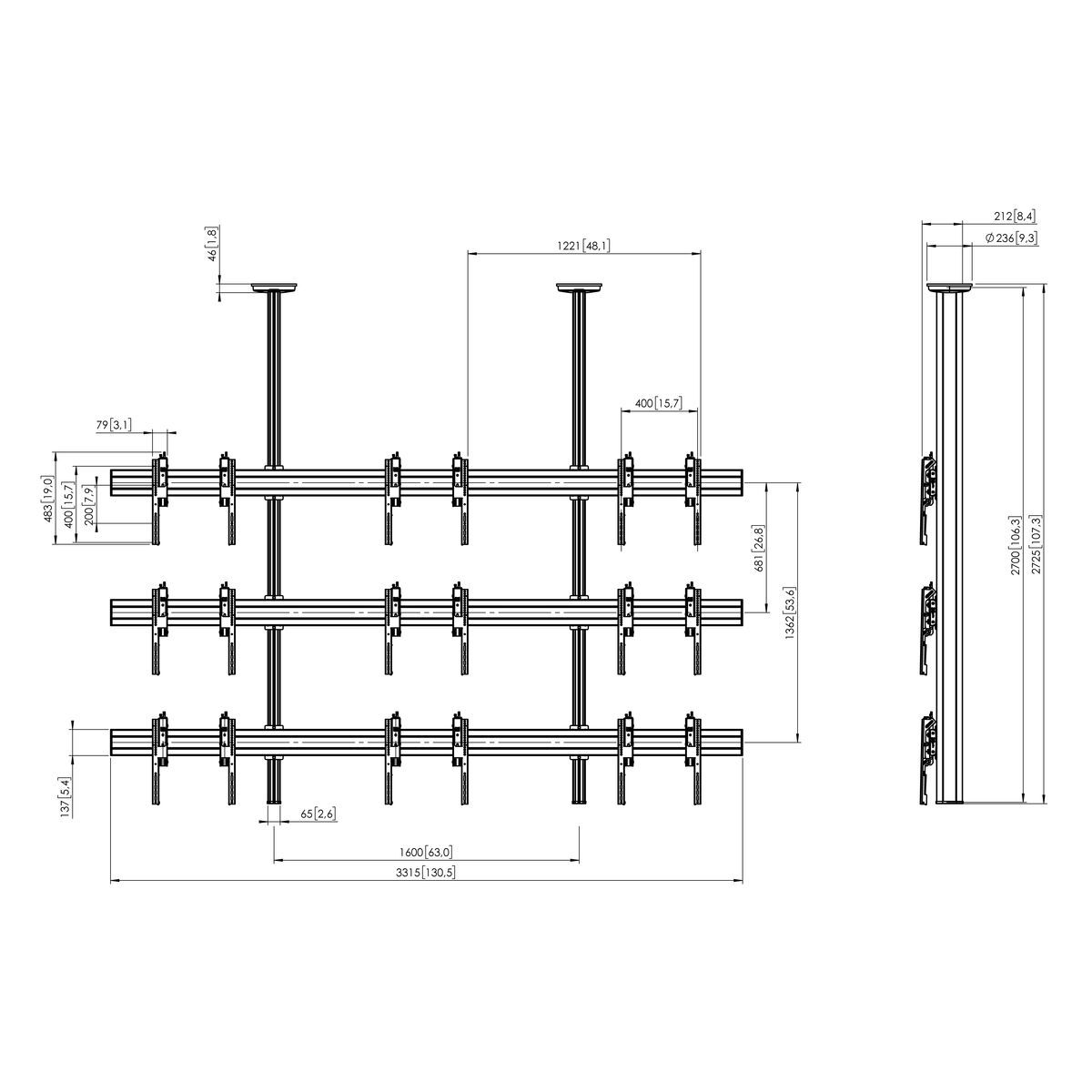

Mounting: 3335 mm x 400 mm (131 inch x 15.7 inch)
Max. weight: 45 kg (99 lb)/display
• 2x PFF 7965, Floor-ceiling mounting plate, adjustable
• 2x PUC 2927, Pole
• 3x PFB 3433, Display interface bar
• 9x PFS 3504, Display interface strips 3D
Precision with ease for a seamless installation
When installing your video wall on the wall is not an option, Vogel's offers the solution to mount your video wall using a ceiling solution. This is possible with Vogel's modular Connect-it system. Combine two floor-ceiling mounting plates with Connect-it PUC 29 poles, one or more display interface plates and display interface strips to create a perfect and seamless video wall.
With ease of installation in mind, Vogel's has designed a unique adjustable floor-to-ceiling mounting plate. This floor-to-ceiling mounting plate makes it possible to install a PUC 29 pole perfectly straight. This floor-to-ceiling mounting plate has a built-in function that makes it possible to correct any unevenness on the ceiling up to ±3 degrees. How easy is that?
The display interface strips used when mounting video walls have maximum adjustability and can be adjusted in 3 directions (3D). These 3D display interface strips can be used to create an absolutely perfect and seamless video wall.
Smart design makes maintenance simple
The built-in service position makes it possible to connect cables after installation of the displays. Each individual display can also be removed for maintenance or replacement. The built-in locking function prevents any horizontal movement of the displays. This video wall kit is suitable for 55 inch (1397 mm) LCD displays with a maximum weight of 45 kg (99 lb)/display.
Install your video wall quickly and easily. Choose precision with ease for a seamless end result. A solution that suits you and your customers perfectly and can be placed in any environment. An attractive design, one system for a variety of applications, easy to maintain, and both durable and versatile. Vogel’s. For Sure.
Awards and certificates
This product passed extensive tests to guarantee compliance with the TÜV Nord quality standard. Products are tested to carry at least 3 times the indicated weight for domestic related products and at least 5 times for professional products without collapsing. TÜV NORD is an independent certification authority and recognized globally as the label of excellent quality.
Specifications For CVW3355 Video Wall Ceiling Solution 3x3
- EAN single box
- TÜV certified
- Product group
- Display ceiling mount
- 5 years
- Video wall configuration
- Suitable for screen type
- Max. weight load (kg)
- Max. weight load (lbs)
- Min. screen size (inch)
- Max. screen size (inch)
- Max. horizontal hole pattern (mm)
- Max. vertical hole pattern (mm)
- Ceiling types
- Flat ceiling
