PPL 2035-120V Projector lift system
The PPL 2035-120V projector lift system is the perfect solution for the integration of a projector into a ceiling where an aesthetical solution is required. Not only is the projector neatly hidden, it is also theft delaying. The lifts runs silently and offers two adjustable positions: top and show.
This lift has been developed to be installed inside a false ceiling where very few space is available. Inside the false ceiling only a minimum height of 13 cm is required to install lift and projector. The motor allows a drop of 35 cm.
The maximum weight capacity of the projector lift is 15 kg.
The PPL 2035-120V is supplied with extendable side brackets in order to position the ceiling tile exactly in the ceiling tile grid. The lift is equipped with two safety screws that prevent the lift to extent further to the preset end stop.
This lift is also available as a 230 V, 50 Hz version.
Awards and certificates
This product passed extensive tests to guarantee compliance with the TÜV Nord quality standard. Products are tested to carry at least 3 times the indicated weight for domestic related products and at least 5 times for professional products without collapsing. TÜV NORD is an independent certification authority and recognized globally as the label of excellent quality.

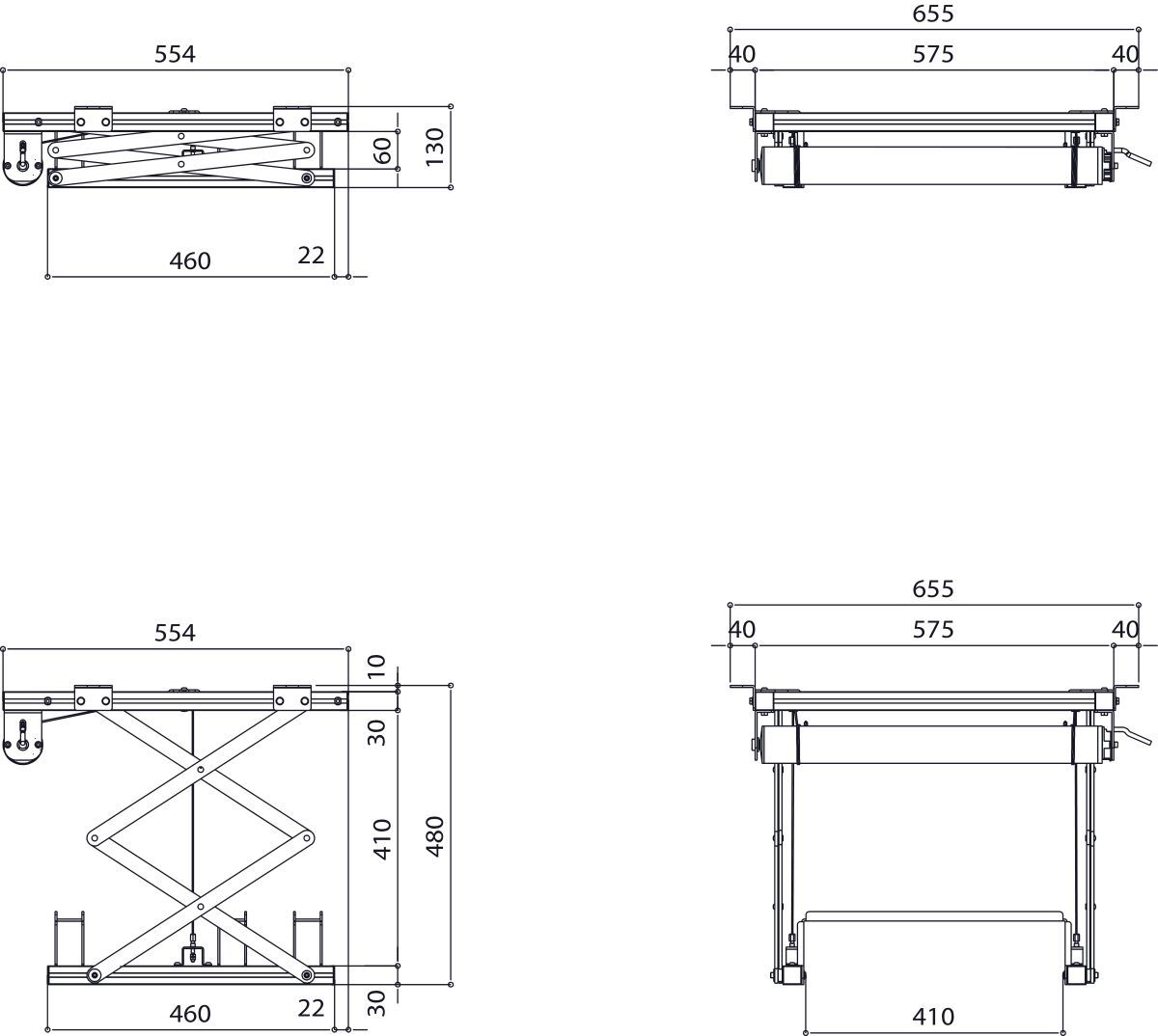

Specifications For PPL 2035-120V Projector lift system
- EAN single box
- 2 years
- TÜV certified
- Min. distance to ceiling (mm)
- Max. distance to ceiling (mm)
- Max. weight load (kg)
- Guarantee on Electrical Parts
- 2 years
- Average power consumption (W)
- Voltage (V)
- 120 V, 60Hz
