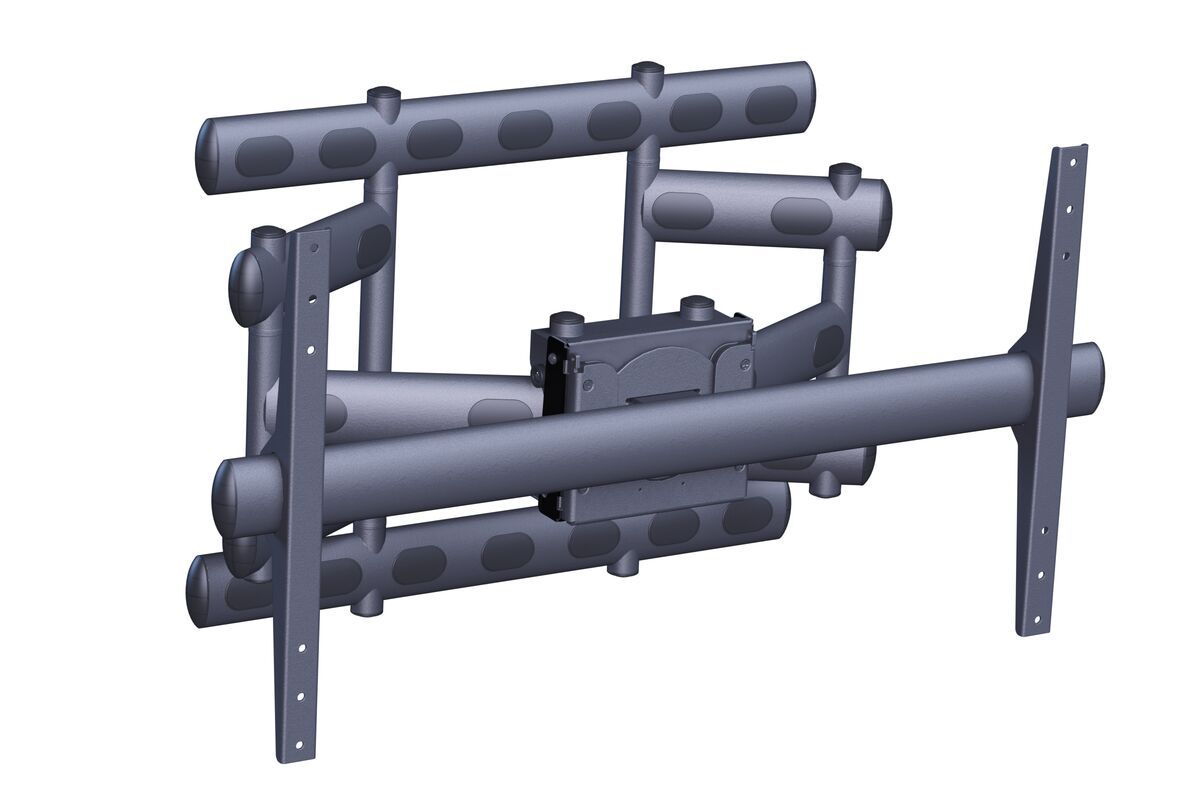

PFW 6855 Display Wall Mount turn, tilt & rotate

PFW 6855 is an articulating wall mount for displays up to 227 kg / 500 lb. PFW 6855 holds displays with a vertical VESA mounting pattern of 200-300-400-500-600 mm and horizontal max. 907 mm. The positive and negative tilt adjustment allows the mount to be installed level and plumb. The dual articulating arms allow even the heaviest display to be pulled away from the wall for service or alignment. The mount features a 90 degree rotation which allows the display to be installed in landscape, portrait or any other position inbetween.
Read more
Request a quote
Ask a question about this product

PFW 6855 Display Wall Mount turn, tilt & rotate

Request a quote
Ask a question about this product

Awards and certificates

This product passed extensive tests to guarantee compliance with the TÜV Nord quality standard. Products are tested to carry at least 3 times the indicated weight for domestic related products and at least 5 times for professional products without collapsing. TÜV NORD is an independent certification authority and recognized globally as the label of excellent quality.

Specifications For PFW 6855 Display Wall Mount turn, tilt & rotate

EAN single box
8712285323201
Series
PFW 6000 Series Pop-out & Turn
Product group
Display mount turn
Guarantee
5 years
TÜV certified
Yes
Colour
Black
Min. screen size (inch)
65
Max. screen size (inch)
120
Max. weight load (kg)
227
Max. weight load (lbs)
500.45
Number of pivot points
3
Turn
Up to 90°
Tilt
Tilt -4°/+4°
Orientation
Landscape / Portrait
Hole pattern (VESA)
  • 300 mm x 300 mm
  • 400 mm x 300 mm
  • 400 mm x 400 mm
  • 500 mm x 300 mm
  • 500 mm x 400 mm
  • 600 mm x 300 mm
  • 600 mm x 400 mm
  • 600 mm x 600 mm
  • 700 mm x 400 mm
  • 800 mm x 400 mm
  • 800 mm x 500 mm
  • 800 mm x 600 mm
Lock options
No lock
Min. horizontal hole pattern (mm)
200
Max. horizontal hole pattern (mm)
907
Min. vertical hole pattern (mm)
300
Max. vertical hole pattern (mm)
600
Number of arms
2
Min. distance to the wall (mm)
216
Min. distance to the wall (inch)
8.5
Max. distance to the wall (mm)
623

Downloads For PFW 6855 Display Wall Mount turn, tilt & rotate

Mounting instruction
Product Data Sheet
Product leaflet
CAD product image
