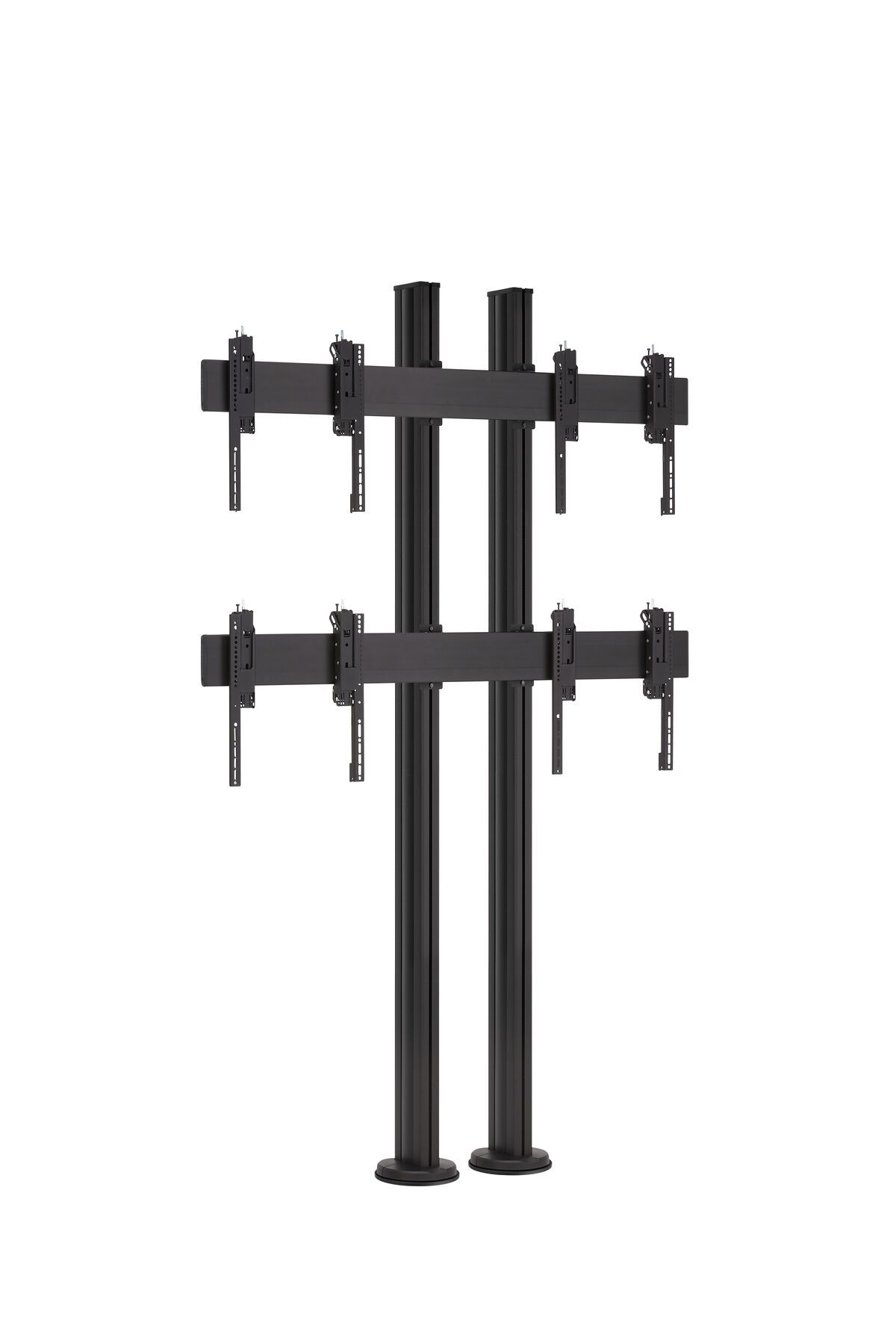

FMVW2255 Video Wall Floor Stand, fixed to floor 2x2

  • Easy to install and maintain

Not able to mount your 2x2 video wall on the wall? Vogel's has put together a complete kit for a professional video wall floor solution, fixed to the floor. This video wall floor solution kit, which is fixed to the floor, is suitable for 55 inch (1397 mm) LCD displays with a maximum weight of 80 kg (176 lb)/display. This modular system is quick and easy to install. Combine the floor/ceiling mounting plates with the PUC 29 poles, display interface plates and display interface strips to create your perfect video wall. With the specially designed (3D) interface strips, you can easily align any screen on the X, Y and Z axis. Even after installation, the screens remain easily accessible for maintenance purposes.

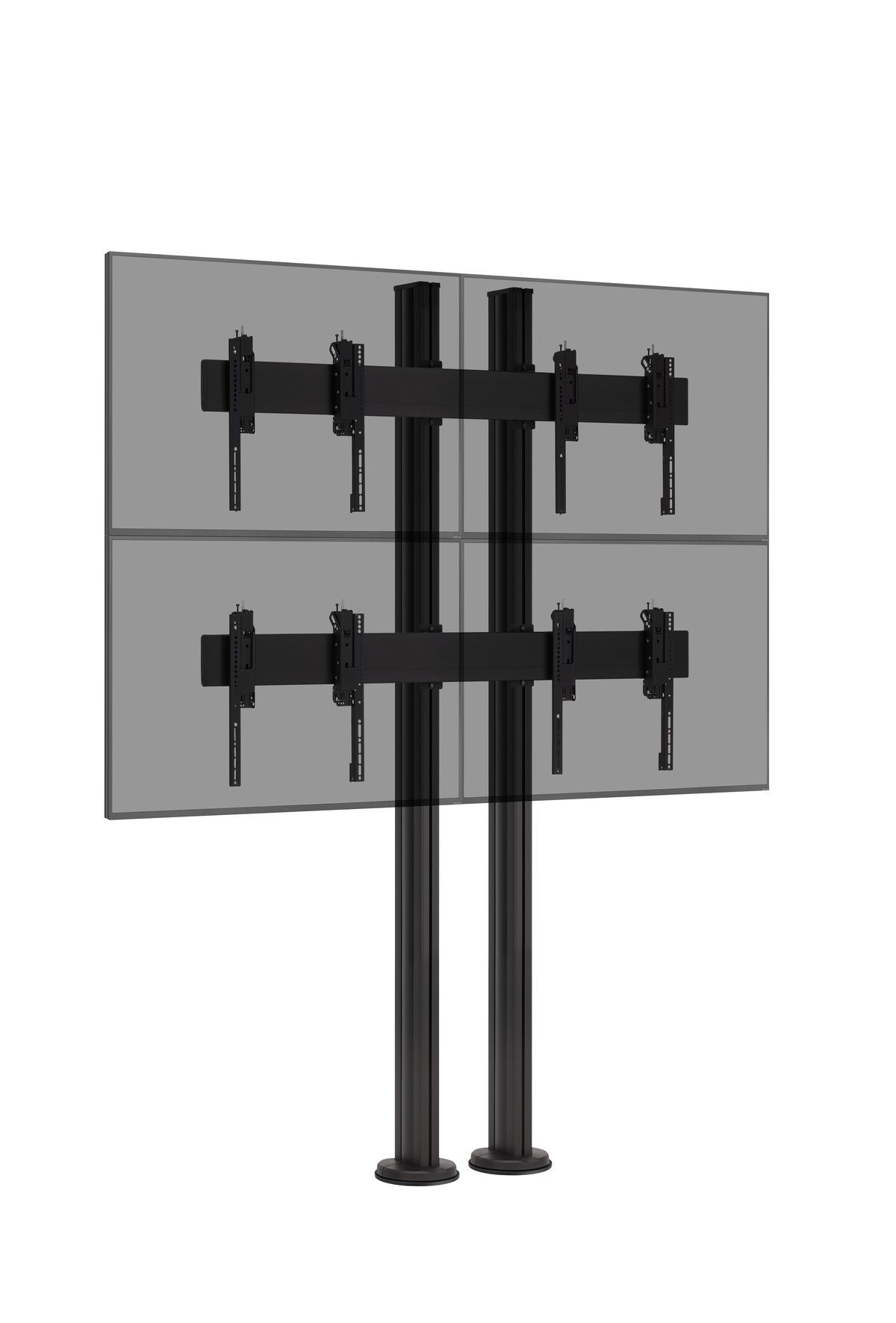

Video wall floor solution 2x2
Display size: 55 inch (1397 mm)
Mounting: 1935 mm x 400 mm (76 inch x 15.7 inch)
Max. weight: 80 kg (176 lb)/display

Kit contains:
• 2x PFF 7965, Floor/ceiling mounting plate, adjustable
• 2x PUC 2920, Pole
• 2x PFB 3419, Display interface bar
• 4x PFS 3504, Display interface strips 3D

Precision with ease for a seamless installation
When installing your video wall on the wall is not an option, Vogel's offers the solution to mount your video wall using a floor solution, fixed to the floor. This is possible with Vogel's modular Connect-it system. Combine two floor/ceiling mounting plates with Connect-it PUC 29 poles, one or more display interface plates and display interface strips to create a perfect and seamless video wall. With ease of installation in mind, Vogel's has designed a unique, adjustable, floor-to-ceiling mounting plate. This floor-to-ceiling mounting plate makes it possible to perfectly install a PUC 29 post vertically. This floor-to-ceiling mounting plate has a built-in function that makes it possible to correct any floor unevenness up to ± 3 degrees. How easy is that? The display interface strips used when mounting video walls enjoy maximum adjustability and can be adjusted in three directions (3D). These 3D display interface strips enable you to create an absolutely perfect and seamless video wall.

Smart design makes maintenance simple
The built-in service position makes it possible to connect cables after installation of the displays. Each individual display can also be removed for maintenance or replacement. The built-in locking function prevents any horizontal movement of the displays. This video wall kit is suitable for 55 inch (1397 mm) LCD displays with a maximum weight of 80 kg (176 lb)/display.

Install your video wall quickly and easily. Choose precision with ease for a seamless end result. A solution that suits you and your customers perfectly and can be placed in any environment. An attractive design, one system for different applications, easy to maintain and both durable and versatile. Vogel’s. For Sure.

FMVW2255 Video Wall Floor Stand, fixed to floor 2x2

Videos

Product video

Awards and certificates

This product passed extensive tests to guarantee compliance with the TÜV Nord quality standard. Products are tested to carry at least 3 times the indicated weight for domestic related products and at least 5 times for professional products without collapsing. TÜV NORD is an independent certification authority and recognized globally as the label of excellent quality.

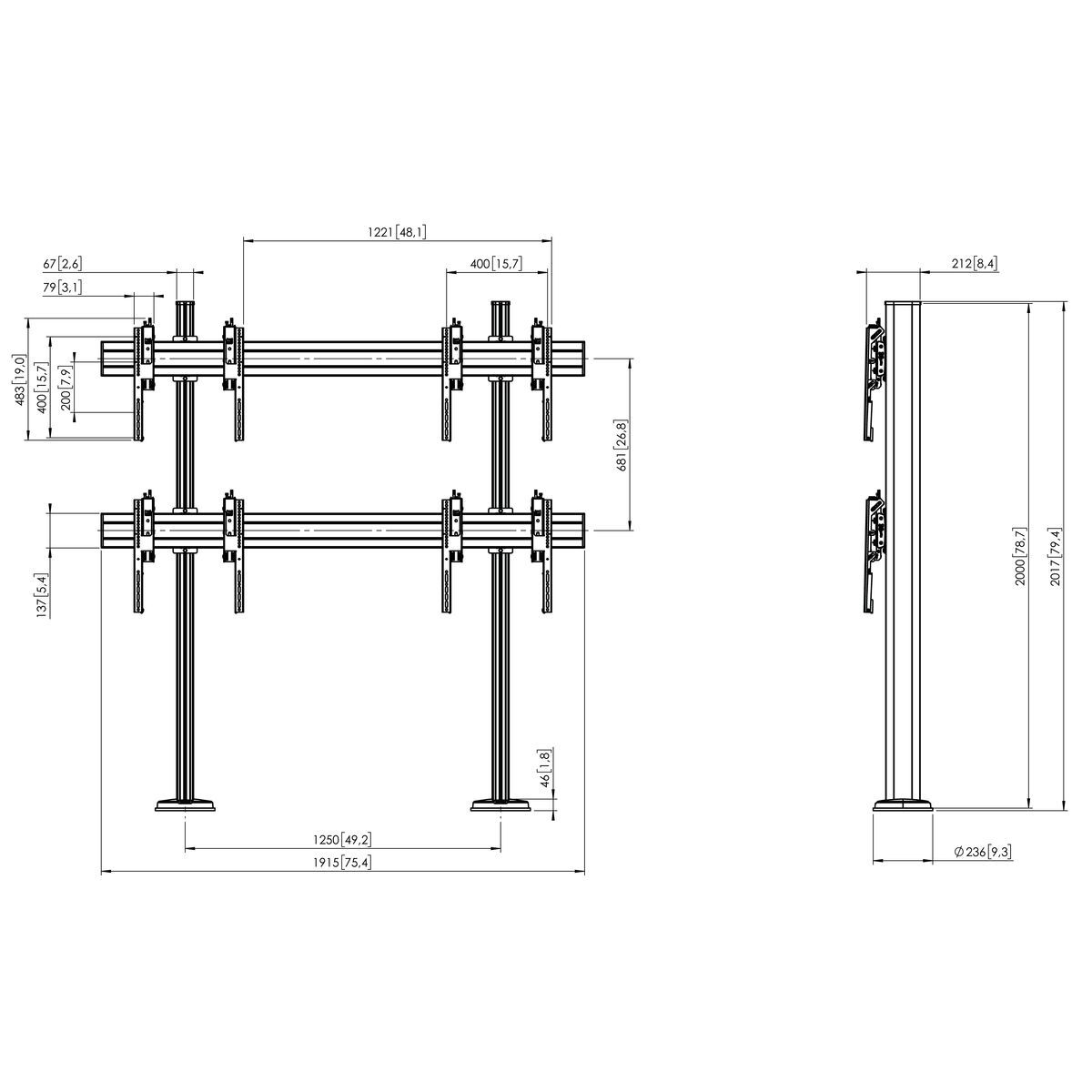

Specifications For FMVW2255 Video Wall Floor Stand, fixed to floor 2x2

EAN single box
8712285341489
Product group
Video wall fixed
Series
Connect-it
TÜV certified
Yes
Guarantee
5 years
Colour
Black
Video wall configuration
2x2
Suitable for screen type
  • LCD
Height (mm)
2017
Min. screen size (inch)
46
Max. screen size (inch)
55
Max. weight load (kg)
80
Max. weight load (lbs)
176.37
Max. vertical hole pattern (mm)
400
Max. horizontal hole pattern (mm)
1935

Downloads For FMVW2255 Video Wall Floor Stand, fixed to floor 2x2
