FCVW2255 Video Wall floor-ceiling Solution 2x2
- Quick to install
- Easy to align on X-Y-Z axis
- Solution for every configuration
- Attractive design
- TÜV-5 certified
Unable to install your 2x2 video wall on the wall? Vogel's has put together a complete kit for a professional floor-to-ceiling solution. This video wall floor/ceiling solution kit is suitable for 55 inch (1397 mm) LCD displays with a maximum weight of 80 kg (176 lb)/display. This modular system is quick and easy to install. Combine the floor/ceiling mounting plates with the PUC 29 poles, display interface plates and display interface strips to create your perfect video wall. With the specially designed (3D) interface strips, you can easily align any screen on the X, Y and Z axis. Even after installation, the screens remain easily accessible for maintenance purposes.

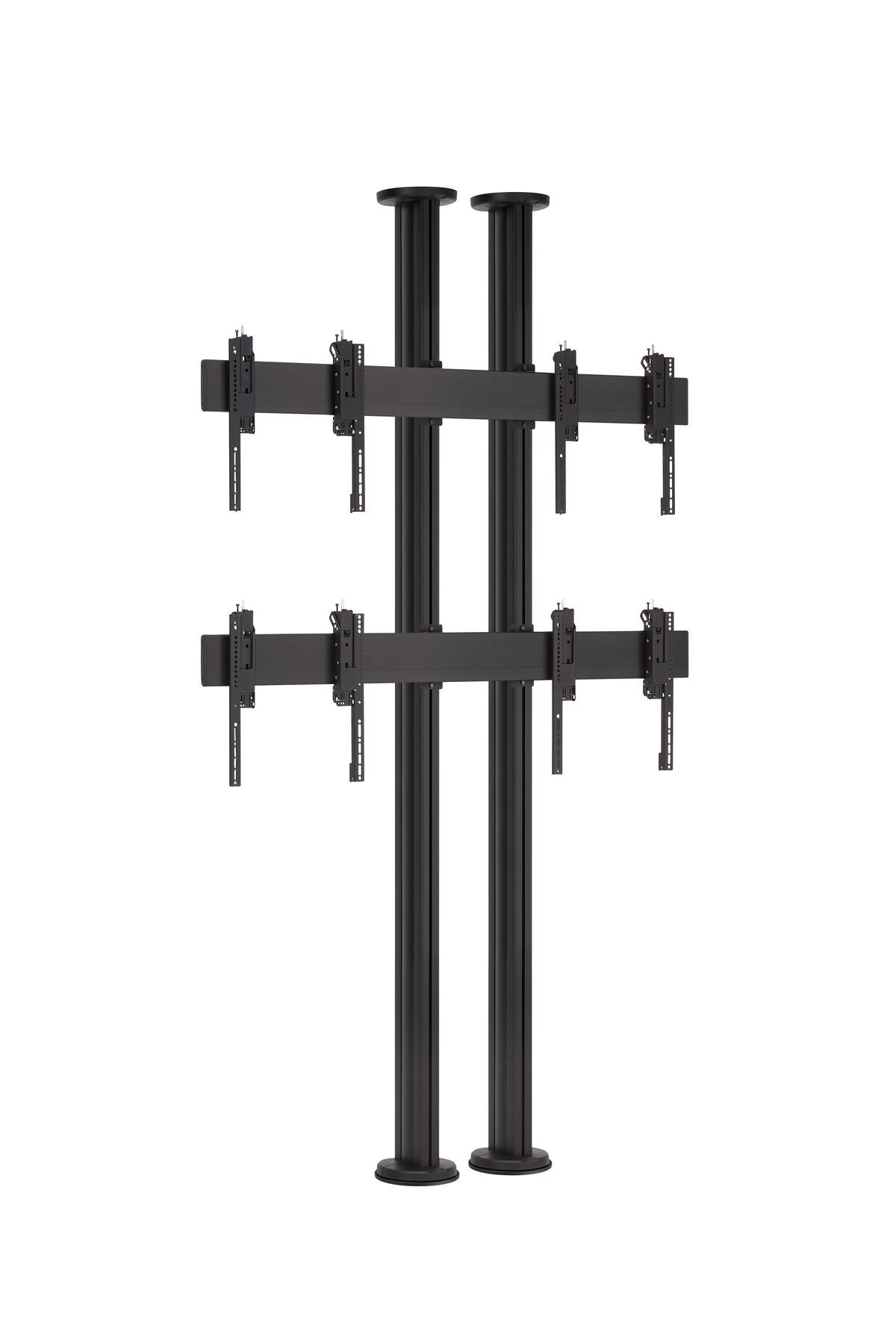

Video wall floor/ceiling solution 2x2
Display size: 55 inch (1397 mm)

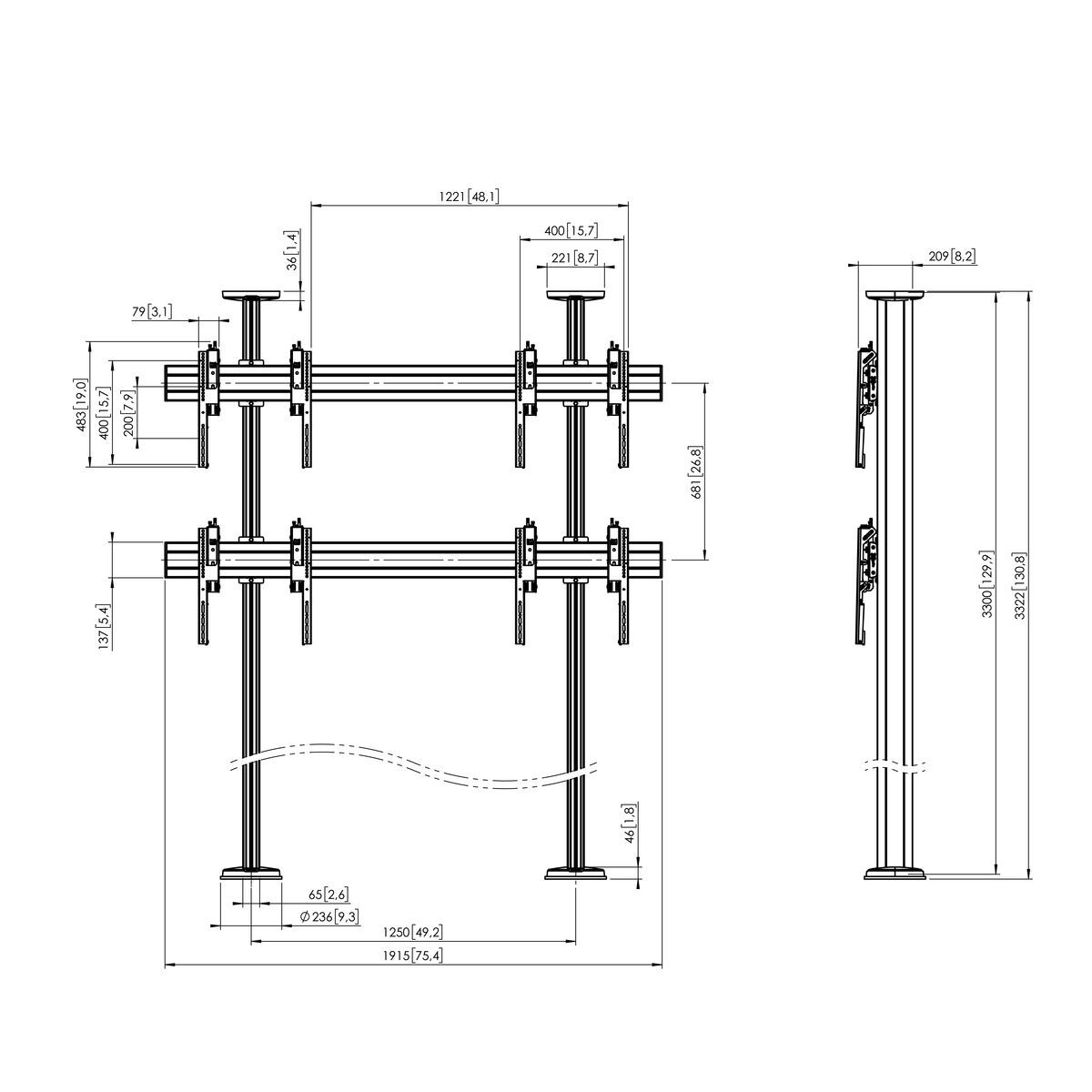

Mounting: 1935 mm x 400 mm (76 inch x 15.7 inch)
Max. weight: 80 kg (176 lb)/display
Ceiling height: 3.30 m (130 inch)
• 2x PFF 7965 Floor/ceiling mounting plate, adjustable
• 2x PFA 9132 Floor/ceiling solution support
• 2x PUC 2933 Tube 3300 mm
• 2x PFB 3419 Display interface plate
• 4x PFS 3504 Display interface strips 3D
Precision with ease for a seamless installation
When you don't have the possibility of installing your video wall on the wall, Vogel's offers the solution of mounting your video wall using a floor-to-ceiling solution. This is possible with Vogel's modular Connect-it system. Combine the floor/ceiling mounting plates with Connect-it PUC 29 poles, one or more display interface plates and display interface strips to create a seamless and perfect video wall. With ease of installation in mind, Vogel's has designed a unique, adjustable, floor-to-ceiling mounting plate. This floor-to-ceiling mounting plate makes it possible to perfectly install a PUC 29 pole vertically. A function has been built into this floor-to-ceiling mounting plate, making it possible to correct any unevenness on the floor up to ±3 degrees. How easy is that? The display interface strips used when mounting video walls enjoy maximum adjustability and can be adjusted in three directions (3D). These 3D display interface strips enable you to create an absolutely perfect and seamless video wall.
Smart design makes maintenance simple
The built-in service position makes it possible to connect cables after installation of the displays. Each individual display can also be removed for maintenance or replacement. The built-in locking function prevents any horizontal movement of the displays. This video wall kit is suitable for 55 inch (1397 mm) LCD displays with a maximum weight of 80 kg (176 lb)/display.
Install your video wall quickly and easily. Choose precision with ease for a seamless end result. A solution that suits you and your customers perfectly and can be placed in any environment. An attractive design, one system for different applications, easy to maintain and both durable and versatile. Vogel’s. For Sure.
Awards and certificates
This product passed extensive tests to guarantee compliance with the TÜV Nord quality standard. Products are tested to carry at least 3 times the indicated weight for domestic related products and at least 5 times for professional products without collapsing. TÜV NORD is an independent certification authority and recognized globally as the label of excellent quality.
Specifications For FCVW2255 Video Wall floor-ceiling Solution 2x2
- EAN single box
- TÜV certified
- Product group
- Pole floor ceiling
- 5 years
- Video wall configuration
- Suitable for screen type
- Max. weight load (kg)
- Max. weight load (lbs)
- Min. screen size (inch)
- Max. screen size (inch)
- Max. horizontal hole pattern (mm)
- Max. vertical hole pattern (mm)
