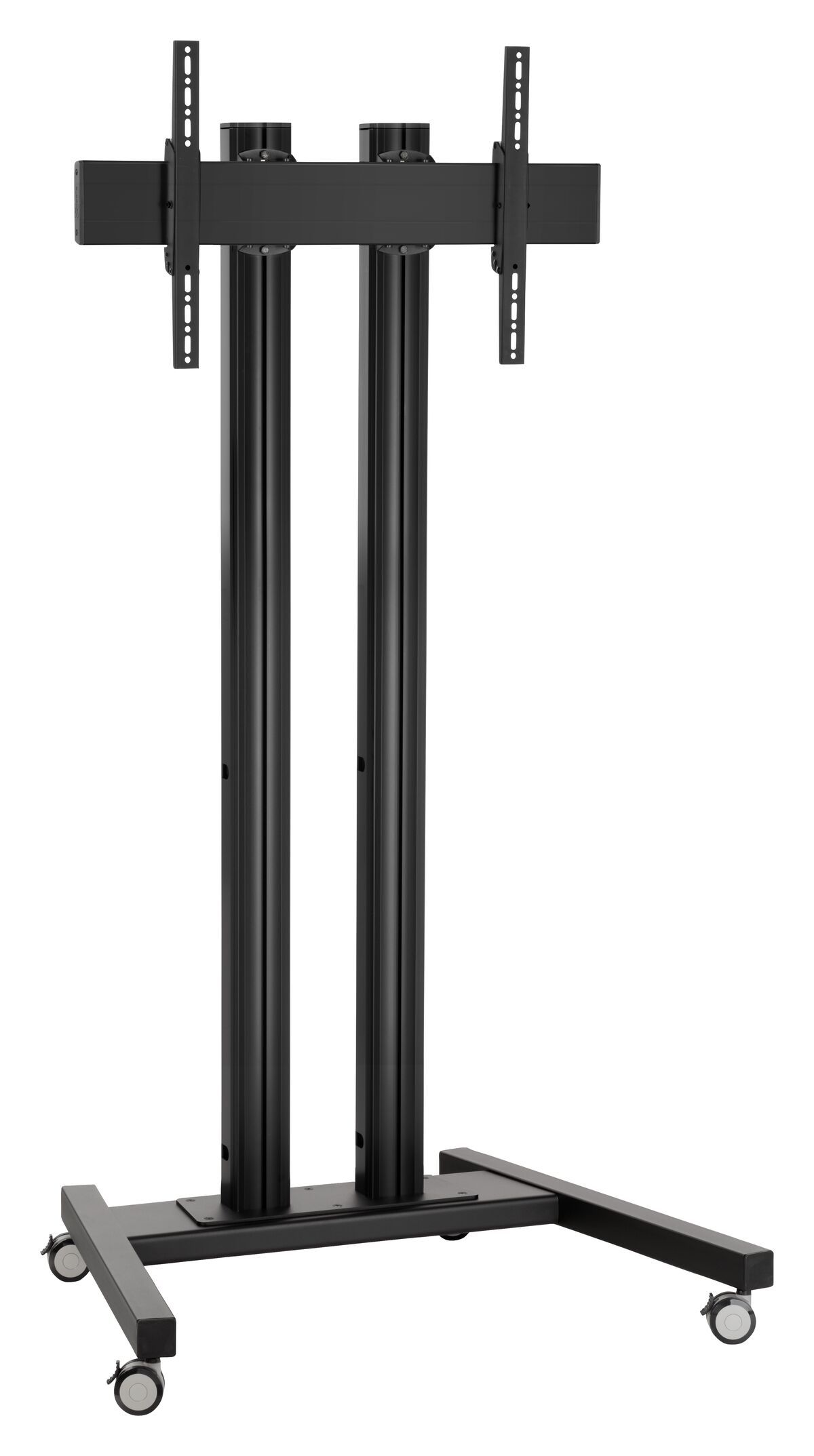

TD1584 Display Trolley ≥65" (black)

  • Cable management
  • Quick and easy installation
  • Stylish design

Trolley kit TD1584
Display size: >65”
Fitment: 800x400
Max. load: 160 kg - 352.7 lbs

Kit consists of:
• 1x PFT 8530 Trolley frame
• 2x PUC 2715 Pole 150 cm
• 1x PFB 3407 Interface bar
• 1x PFS 3204 Interface display strips
Read more
Request a quote
Ask a question about this product

TD1584 Display Trolley ≥65" (black)

Request a quote
Ask a question about this product

Videos

Product video

Awards and certificates

This product passed extensive tests to guarantee compliance with the TÜV Nord quality standard. Products are tested to carry at least 3 times the indicated weight for domestic related products and at least 5 times for professional products without collapsing. TÜV NORD is an independent certification authority and recognized globally as the label of excellent quality.

Specifications For TD1584 Display Trolley ≥65" (black)

EAN single box
8712285333149
Product group
Display trolley
Series
Connect-it
TÜV certified
Yes
Guarantee
5 years
Colour
Black
Height (mm)
1651
Height (mm)
1500
Max. distance to floor - center display (mm)
1551
Tilt
Tilt -3°/+3°
Min. screen size (inch)
65
Hole pattern (VESA)
  • 400 mm x 400 mm
  • 500 mm x 200 mm
  • 500 mm x 300 mm
  • 500 mm x 400 mm
  • 600 mm x 200 mm
  • 600 mm x 300 mm
  • 600 mm x 400 mm
  • 700 mm x 400 mm
  • 800 mm x 400 mm
Max. weight load (kg)
160
Min. vertical hole pattern (mm)
100
Max. vertical hole pattern (mm)
400
Min. horizontal hole pattern (mm)
100
Max. horizontal hole pattern (mm)
850
Height of trolley/stand (mm)
1500
Max. height mid display (mm)
1400

Downloads For TD1584 Display Trolley ≥65" (black)

CAD product image
Product Data Sheet
Product leaflet
