PFW 6910 Display wall mount tilt
- Easy levelling and installation
- For the heaviest displays
- Self-centering display bolts
- Integrated lock
- Locked service position

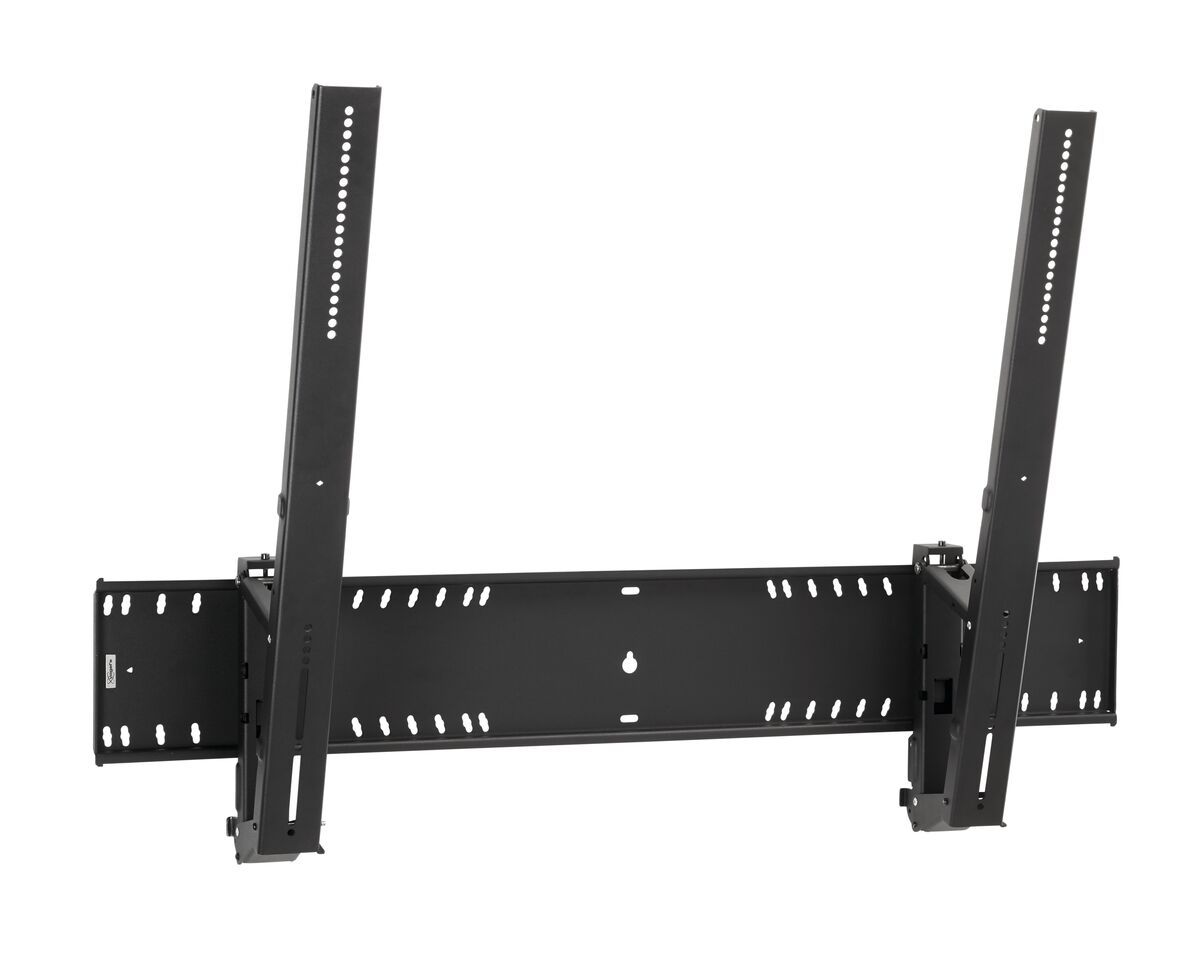

The PFW 6910 is a robust yet elegant tilt wall mount. It features an aesthetically integrated lock on top of the ability to tilt up to 15°. The mount can hold displays from 80 inch, weighing up to 230 kg
Videos
Product video
Mounting instruction video
Awards and certificates
An AV Award is a globally recognized and respected industry award in the Audio Visual Industry.
This product passed extensive tests to guarantee compliance with the TÜV Nord quality standard. Products are tested to carry at least 3 times the indicated weight for domestic related products and at least 5 times for professional products without collapsing. TÜV NORD is an independent certification authority and recognized globally as the label of excellent quality.
Fischer plugs inside
Specifications For PFW 6910 Display wall mount tilt
- EAN single box
- 8712285336126
- Series
- PFW 6000 Series
- Product group
- Display mount tilt
- Guarantee
- 5 years
- TÜV certified
- Yes
- Awards
-
- AV Technology - Best of Show at ISE 2017
- Colour
- Black
- Min. screen size (inch)
- 80
- Max. screen size (inch)
- 120
- Max. weight load (kg)
- 230
- Tilt
- Tilt up to 15°
- Orientation
- Landscape
- Hole pattern (VESA)
-
- 50 mm x 50 mm
- 400 mm x 400 mm
- 500 mm x 400 mm
- 600 mm x 400 mm
- 600 mm x 600 mm
- 700 mm x 400 mm
- 700 mm x 450 mm
- 800 mm x 400 mm
- 800 mm x 450 mm
- 800 mm x 500 mm
- 950 mm x 550 mm
- Lock options
- Levelling function
- Post-installation horizontal levelling
- Fischer inside
- Yes
- Service position
- Yes
- Min. horizontal hole pattern (mm)
- 100
- Max. horizontal hole pattern (mm)
- 1200
- Min. vertical hole pattern (mm)
- 400
- Max. vertical hole pattern (mm)
- 800
- Min. distance to the wall (mm)
- 62
