CT240844S Ceiling mount turn

Find a mount for your TV
  • Stylish high-end design
  • Easy install
  • Rotatable

Ceiling mount kit CT240844
Display size: < 65”
Fitment: 400x400
Max. load: 40 kg - 88 lbs

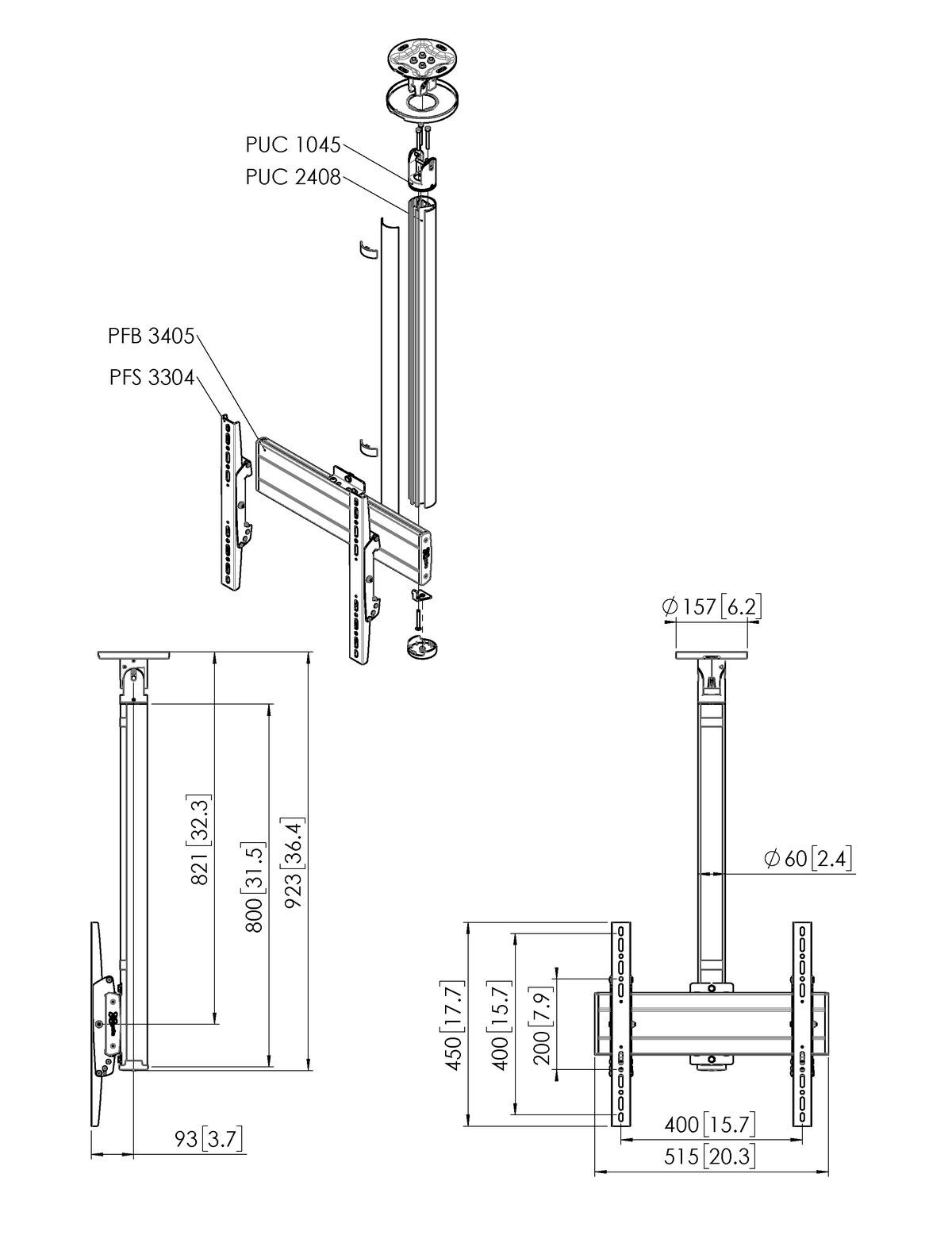

Kit consists of:
• 1x PUC 1045 Ceiling plate turn and tilt
• 1x PUC 2408 Pole 80 cm
• 1x PFB 3405 Interface bar
• 1x PFS 3304 Interface display strips

Check compatibility by entering your TV brand and model. The model number is usually displayed on a sticker at the back of the TV. For example: 'LG OLED55C7V'

Additional installation materials are needed to install this screen. Click here to request the Vogel's Service / Adaptor Kit . !

CT240844S Ceiling mount turn

overlay

Videos

Commercial video

Awards and certificates

This product passed extensive tests to guarantee compliance with the TÜV Nord quality standard. Products are tested to carry at least 3 times the indicated weight for domestic related products and at least 5 times for professional products without collapsing. TÜV NORD is an independent certification authority and recognized globally as the label of excellent quality.

Specifications For CT240844S Ceiling mount turn

EAN single box
8712285347184
Series
Connect-it
TÜV certified
Yes
Product group
Display ceiling mount
Guarantee
5 years
Colour
Silver
Max. weight load (kg)
40
Max. distance to ceiling - center display (mm)
821
Height options
  • Fixed height
Turn
Up to 360°
Tilt
Tilt up to 20°
Orientation
Landscape / Portrait
Height (mm)
800
Max. screen size (inch)
65
Min. horizontal hole pattern (mm)
100
Max. horizontal hole pattern (mm)
400
Min. vertical hole pattern (mm)
100
Max. vertical hole pattern (mm)
400
Ceiling types
Flat / inclined ceiling
