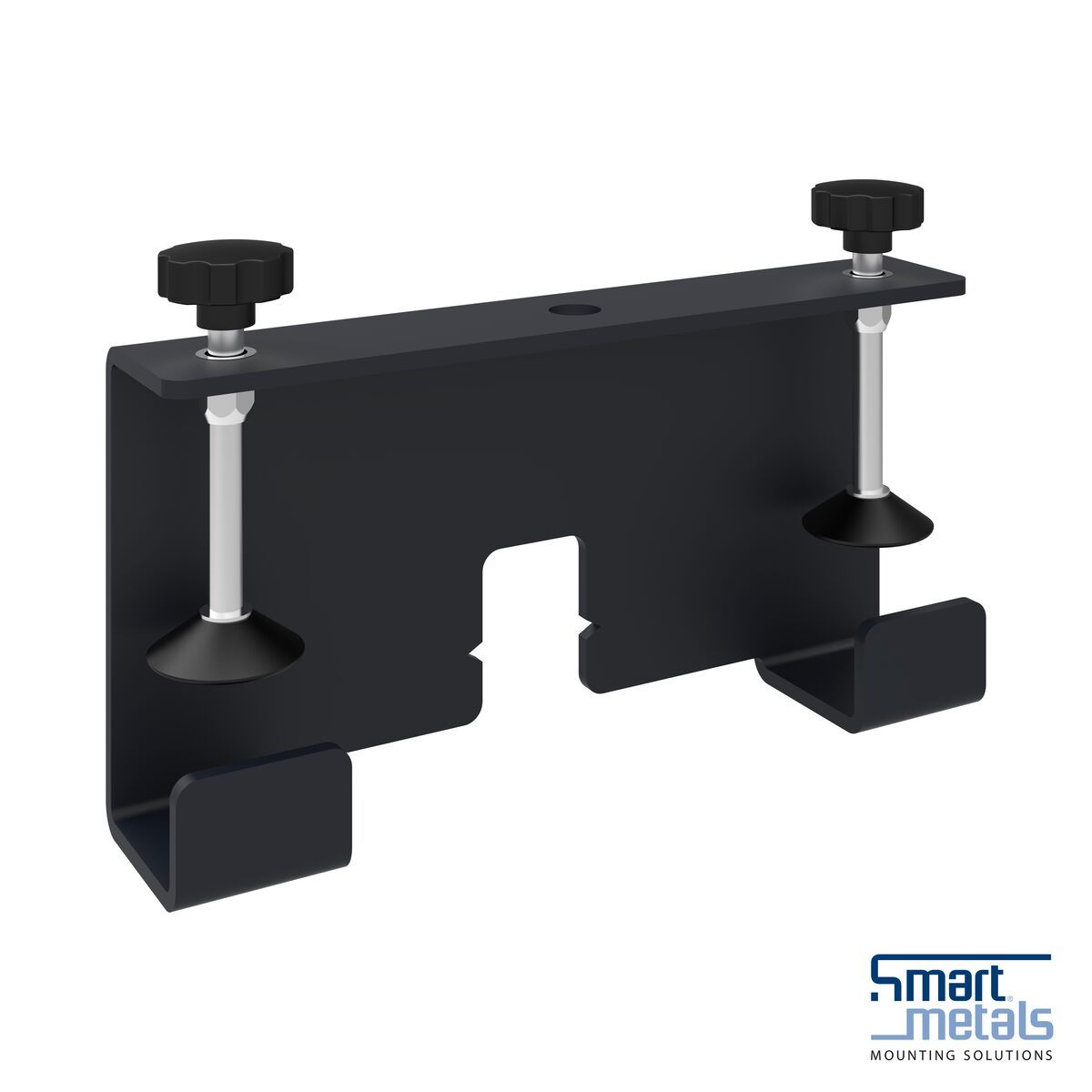

S112.1019 Stackframe clamp

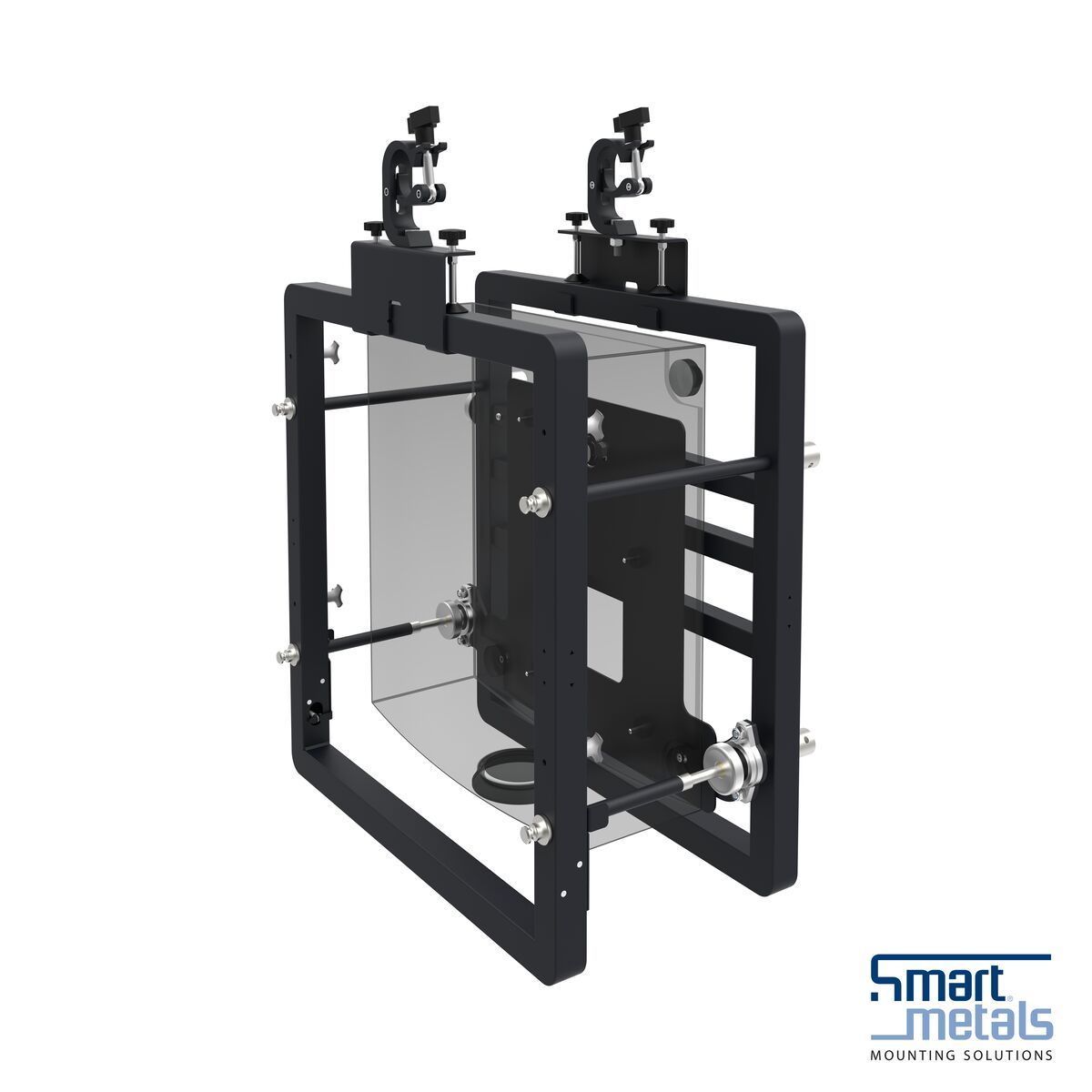

Use two of these stack frame clamps and combine with two trigger clamps (optionally available) to mount a projector in a stack or rigging frame to a truss. Suitable for a 40 x 40 mm (1.58 x 1.58 inches) stacking frame.

  • Maximum load without safety cable is 50 kg (110 lbs)
  • Maximum load with safety cable is 100 kg (220 lbs)
  • TÜV certified and meets EC and DGUV requirements

S112.1019 Stackframe clamp

Specifications For S112.1019 Stackframe clamp

Product group
Rental projection
EAN single box
8718868871602
Guarantee
5 years
Colour
Black

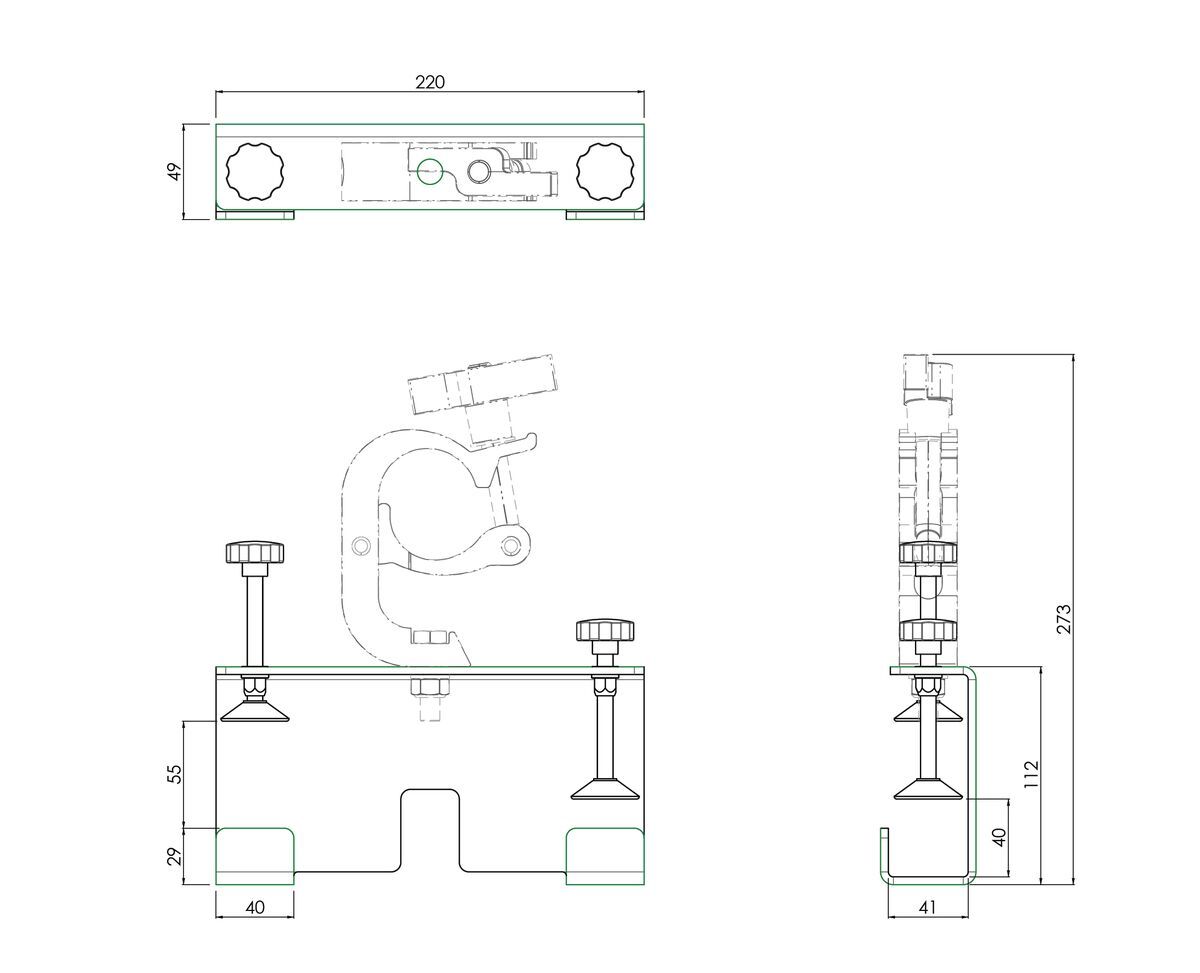

Height (mm)
49
Width (mm)
220
Max. weight load (kg)
100
Max. weight load (lbs)
220.46
